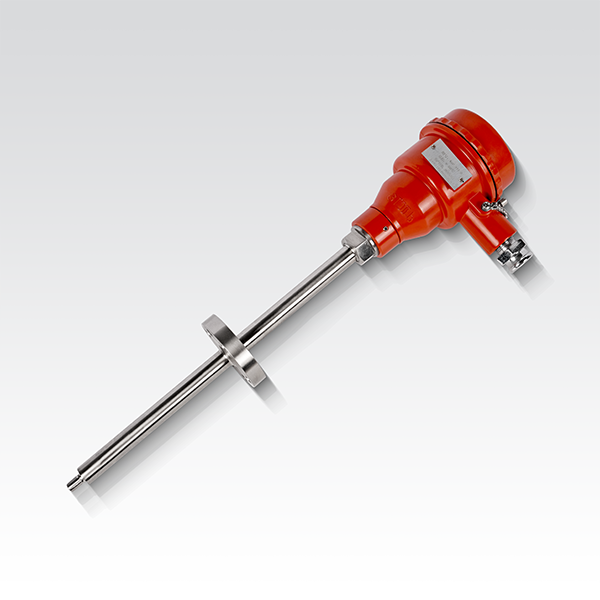

ZST13 Screw-in Thermocouple-Type B Junction Box
The ZST13 temperature sensor is used to measure the temperature of liquid or gas. Whether under positive pressure or negative pressure, reliable sealing is an important principle for selecting thermocouples. Ambient temperature at the junction box can reach +100℃. Except standard B type junction box (IP54), you can also choose BUZ (IP65), BUZH, BBK type junction box. A stainless steel sleeve is used to protect the thermocouple ferrule from chemical corrosion and mechanical damage. Thermocouple ferrules comply with EN 60 584 standard (Class 2) or DIN 43 710 standard.
Features
Temperature measurement range: -200～+800℃
Various indexing thermocouples are available
Can provide a single or double thermocouple
Junction box type B, BUZ, BUZH, BBK
An integral temperature transmitter is optional
Application
Oven, furnace, heating device, factory and process technology
Products Description
The ZST13 temperature sensor is used to measure the temperature of liquid or gas. Whether under positive pressure or negative pressure, reliable sealing is an important principle for selecting thermocouples. Ambient temperature at the junction box can reach +100℃. Except standard B type junction box (IP54), you can also choose BUZ (IP65), BUZH, BBK type junction box. A stainless steel sleeve is used to protect the thermocouple ferrule from chemical corrosion and mechanical damage. Thermocouple ferrules comply with EN 60 584 standard (Class 2) or DIN 43 710 standard.
Products Parameters
| Temperature range | -40-200°C (optional) |
| Precision | 0.5%FS , 1.0%FS |
| Output | output 4-20mA or 20～4mA |
| Powered by | +24VDC |
| Process connection | Thread, stainless steel 1. 4571 |
| Thermal response time | <30s |
| Thermocouple inserts | can be replaced, insulated type |
| Junction box | B type DIN 43 729 standard,cast aluminum housing, E-connection:M20×1.5 |
| Extension tube | Stainless steel 1.4571 (equivalent to 316Ti), length: 130mm |
| Protection tube | Stainless steel 1.4571, 9mm outer diameter |
Dimension
Ordering Guide
