Features
Quick temperature measurement and fast response
Anti-interference, good stability
Small size and easy installation
All-stainless steel integrated structure
Application
Electricity, metallurgy
Medicine, food
Light industry, textile
Compressor, natural gas
Products Description

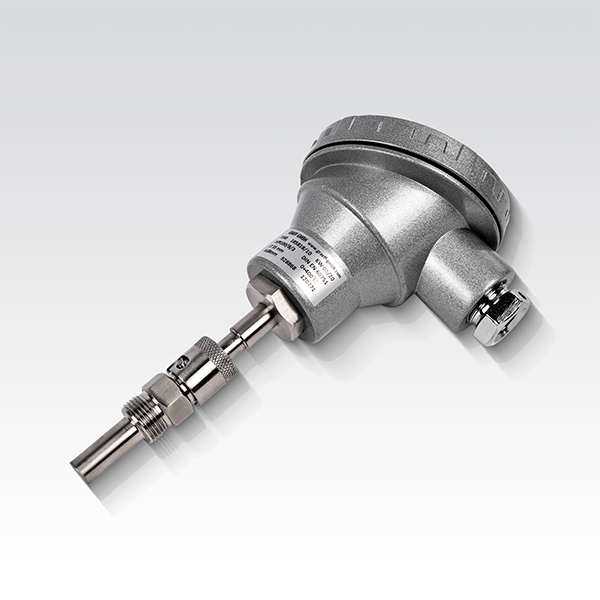

The TTK series temperature transmitter is encapsulated in a stainless steel case, with small size, excellent waterproof and shockproof performance, safety and reliability. The product uses thermal resistance signals to be converted into standard current and voltage signal outputs through the transmission module. This product can be equipped with on-site display. The temperature measurement range has a linear relationship with the output signal to achieve long-distance control with relatively high measurement accuracy. It is widely used in temperature measurement process control in power, metallurgy, medicine, food and other industrial fields.
Products Parameters
| Temperature range | -40-200°C (optional) |
| Precision | 0.5%FS , 1.0%FS |
| Output | output 4-20mA,0-10V, PT100 |
| Powered by | +24VDC |
| Process connection | Gl/4 , Gl/2, M20*1.5 , 1.5 inch clamp (can be customized) |
| Thermal response time | <30s |
| Probe diameter | 8mm ( can be customized) |
| Electrical connections | Hessman connector, direct lead, M12*l |
| Probe length | 30mm , 50mm , 100mm (can be customized) |
| Wetted material | 304 , 316L |
