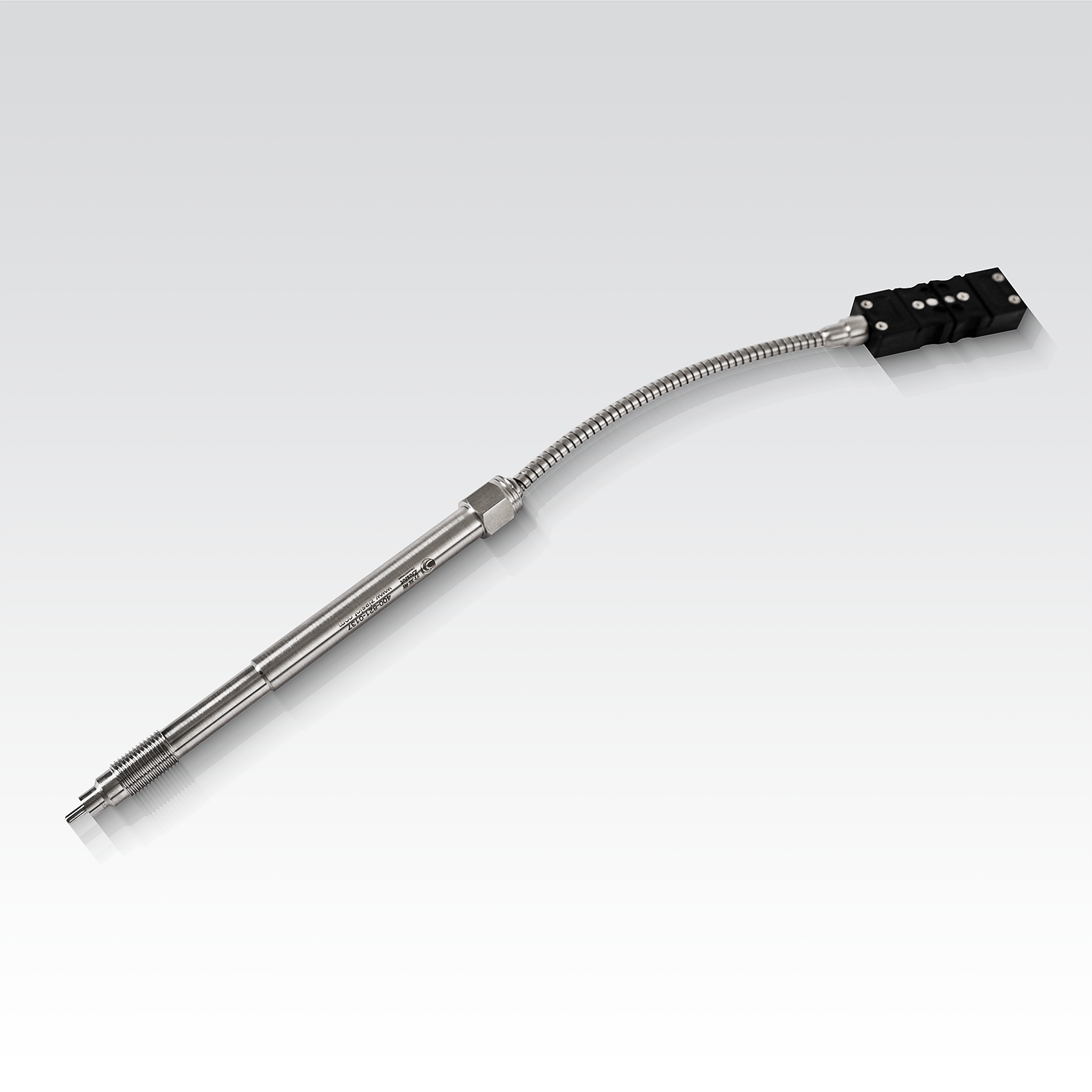

Extruder Melt Temperature Transmitter
The MTT Series extruder melt temperature sensor is suitable for temperature measurement of melt, fluid, gas, etc. The forms of temperature sensor are various . While reducing the medium flow resistance, the sensitive part of the probe is completely placed in the measurement medium, with higher measurement accuracy, shorter response time, better reliability and long life etc.
Features
1- Temperature range: 0~700℃
2- 4-20mA output is optional
3- Different thermocouple and RTD are optional
4- Different Shapes of tip is available
5-Electrical connection: 2PIN special connection; 3PIN special connection;
6-Probe thread: M10×1.0,M12×1.5,M14×1.5,1/2″-20UNF etc.
7- Probe depth : 0mm~30mm
Application
Petrochemicals
Textile&chemical fiber
Plastics&rubber
Products Description
The MTT Series extruder melt temperature sensor is suitable for temperature measurement of melt, fluid, gas, etc. The forms of temperature sensor are various . While reducing the medium flow resistance, the sensitive part of the probe is completely placed in the measurement medium, with higher measurement accuracy, shorter response time, better reliability and long life etc.
Products Parameters
| Temperature Range | 0~700celsius | |
| Accuracy | Class A | |
| Temperature configuration | Thermocouple | E, J, K, S type |
| Thermal resistance | Pt100 | |
| Electrical connection | Thermocouple, Leading wire,7-pin aviation connector | |
| Thread size | 1/2-20UNF,M18×1.5,M14×1.5 | |
| Probe depth | 0mm~30mm | |
| Probe shape | Flat, Conical type, Cylindrical type ,Blade shape | |
| Rigid/flexible stem | Rigid=150mm(MAX<450mm); | |
| Flexible=50mm(MAX<1000mm) | ||
Dimension
