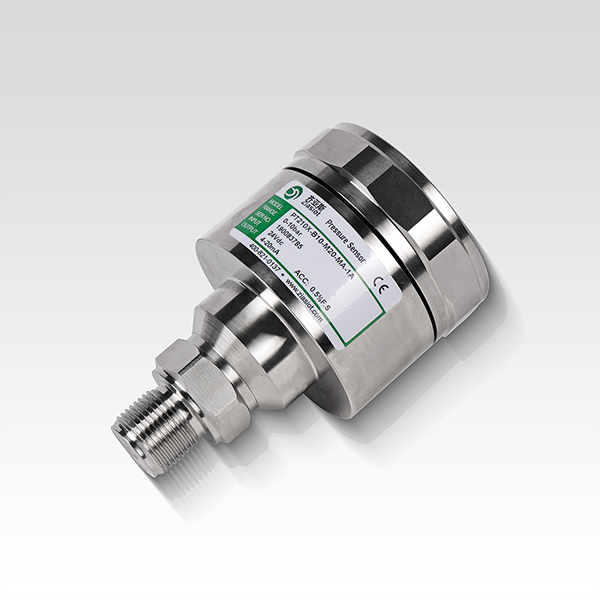

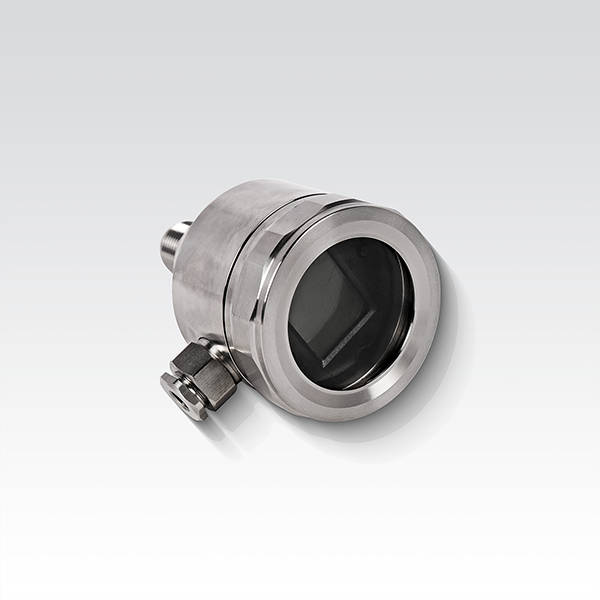

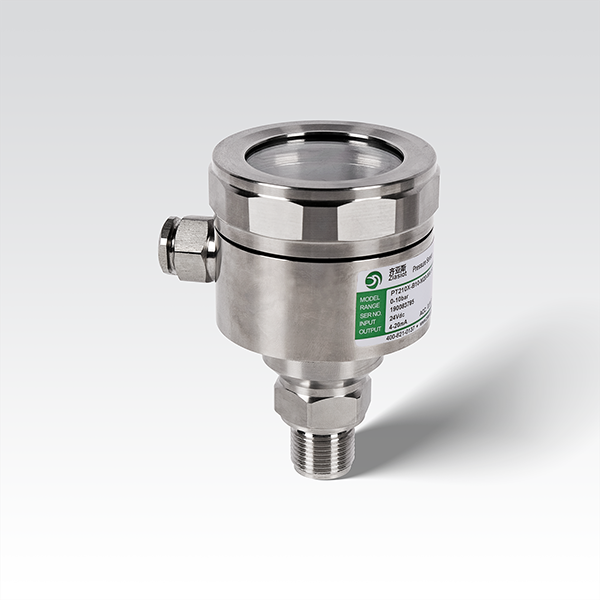

PT216 Explosion Proof Pressure Transmitter With Indicator
PT216FH/PT216FM/PT216FJ explosion-proof pressure transmitter with indicator is an intrinsically safe pressure transmitter, which adopts an imported diffused silicon core as component and has strong earthquake resistance, long-term stability and various specifications and parameters
Wide measuring range
Customization is available
Intelligent circuit board, no moving parts, stable and reliable
Efficient lightning protection and strong anti-RFI & EMI protection
Varies in forms optional
Intelligent product site setting
Intrinsically safe type
Application Area
Drilling platform
Petrochemical and natural gas control system
Explosion-proof industrial process measurement and control
Product Description
The model PT216 explosion-proof digital pressure sensor transducer has been built for the demanding needs of industrial oil and gas applications. These pressure transmitters can be given with various analog signals, including 4…20 mA, 0…5 VDC, and 1…5VDC. They have excellent stability, high impact resistance, high precision, and powerful anti-interference capabilities. The liquid pressure at -196ºC can be directly measured by these pressure transmitters. There are various types of electrical and process connections available.
Products Dimension
Products Connection
Technical Parameters
| Pressure range | 0~100 bar, 0~2000 bar (0-1 MPa, 0-200 MPa) | |||
| Type of pressure | Gauge pressure and absolute pressure | |||
| measurement accuracy | Class 0.5, class 0.25 | |||
| output signal | (4～20) mA | |||
| Power supply | 12～30 Vdc | |||
| electrical connection | Direct outgoing line | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | (-20～80)℃ | |||
| the protection grades | IP65 | |||
| Intrinsically safe grade | ExiaⅡCT4 | |||
| Long-term stability | 0.2% FS/year | |||
| Process connection | G1/4,G1/4C,G1/2,1/2NPT,1/4NPT,M20X1.5,R1/2,R1/4 | |||
Order Code
