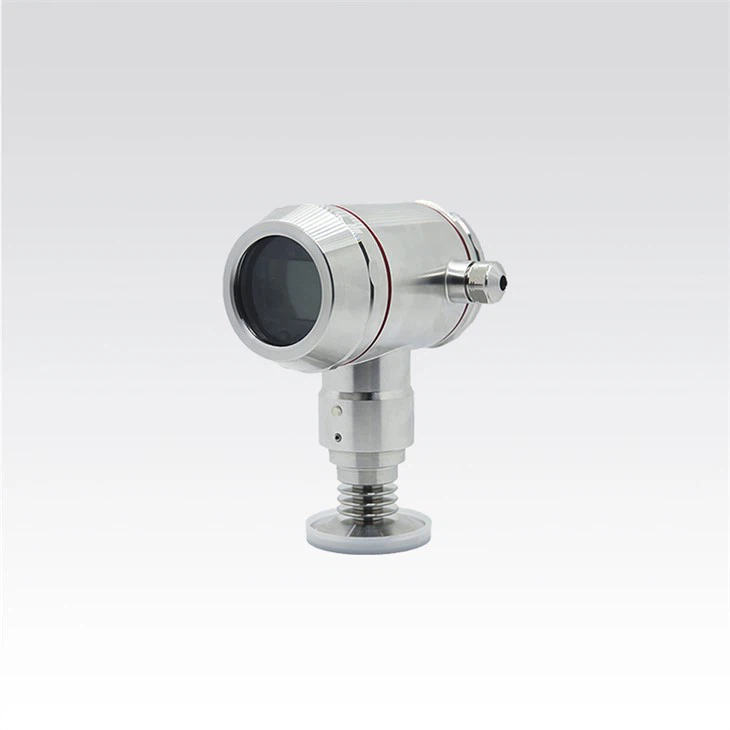

PT216 Hygienic Digital Pressure Transmitter
PT216 Hygienic Digital Pressure Transmitter is a sanitary special pressure transmitter with a diffused silicon pressure core as a sensitive element and 316L stainless steel diaphragm isolation. This series of products has the characteristics of a stainless steel welded structure, high precision, non-cavity corrugated flat film, a wide measuring range, and a field display. Widely used in food, medicine, and other health industries, or for fluid pressure measurement and control with particles.
Cavitless corrugated flat film
A variety of housings are available
Protection level IP68
Multiple electrical connection options
Sanitary surface roughness Ra < 0.38 μm can be selected
Application Area
Food and beverage industry
Medical pharmaceutical industry
biotechnology
Pigment, spraying
Chemical industry and paper industry
Product Description
PT216 Hygienic Digital Pressure Transmitter is a sanitary special pressure transmitter with diffused silicon pressure core as sensitive element and 316L stainless steel diaphragm isolation. This series of products has the characteristics of a stainless steel welded structure, high precision, non-cavity corrugated flat film, a wide measuring range, and a field display. Widely used in food, medicine, and other health industries, or fluid pressure measurement and control with particles.
Dimension
Parameters
| Product mix | Preposition type | Flat film type/sanitary type |
| Pressure range | -1 ~ 0 bar to 0 ~ 400 bar | -1 ~ 0 bar to 0 ~ 40 bar (specific pressure shall not exceed PN value of pressure interface) |
| Type of pressure | Gauge pressure and absolute pressure | |
| Measurement accuracy | Grade 0.5, Grade 0.25, Grade 0.1 | |
| Behaviour of electricity | Two-wire system | |
| Output signal | (4～20) mA | |
| Power supply | 12～30 Vdc | |
| Load resistance | ＜(U-12)/0.02 | |
| electrical connection | M12 connector, Hessmann, waterproof joint | |
| Ambient temperature | (-40～80)℃ | |
| Working temperature | Direct connection type: (-20～125)℃, heat sink type: (-20～160)℃, | |
| The protection grades | IP67 | |
Wetted Part
E-Connection
Order Code
