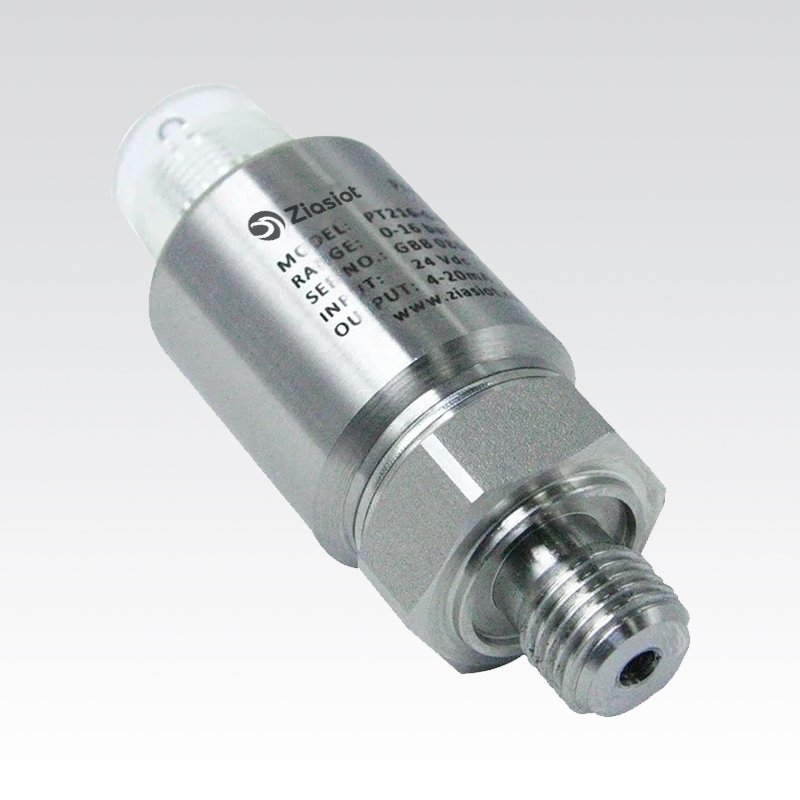

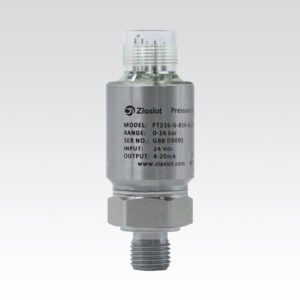

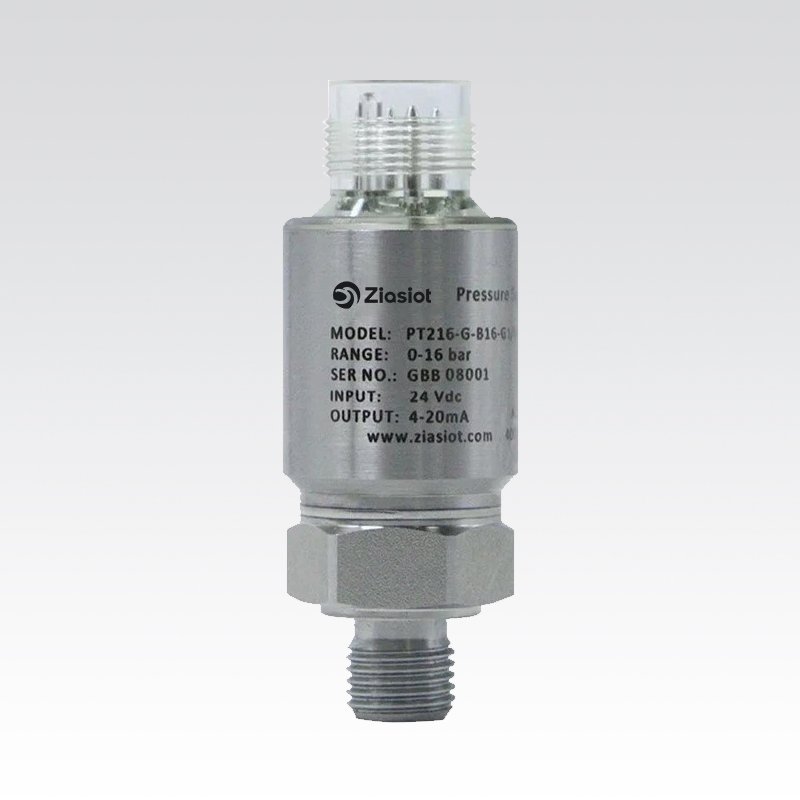

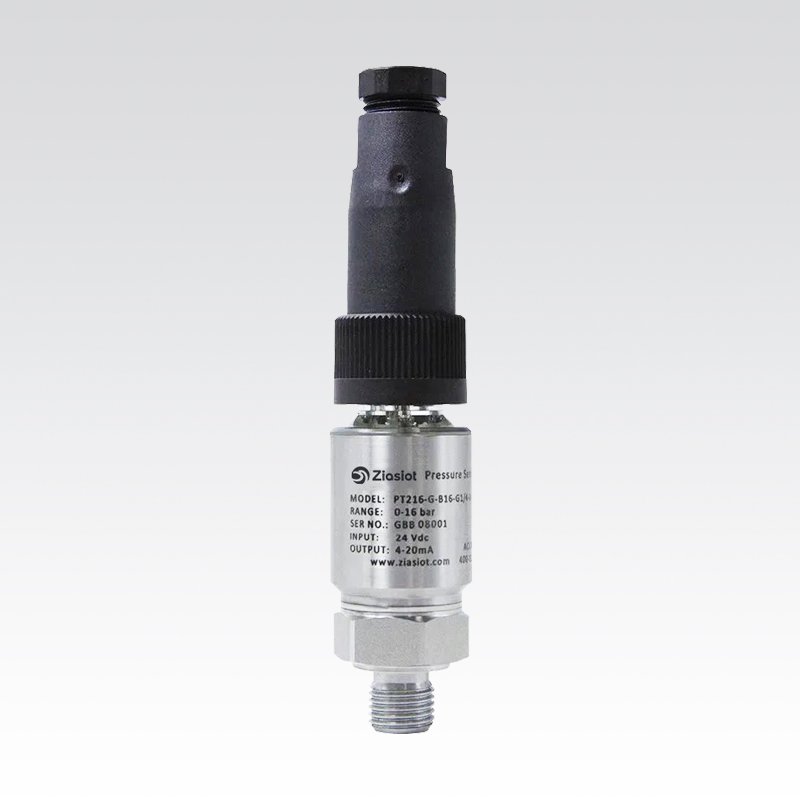

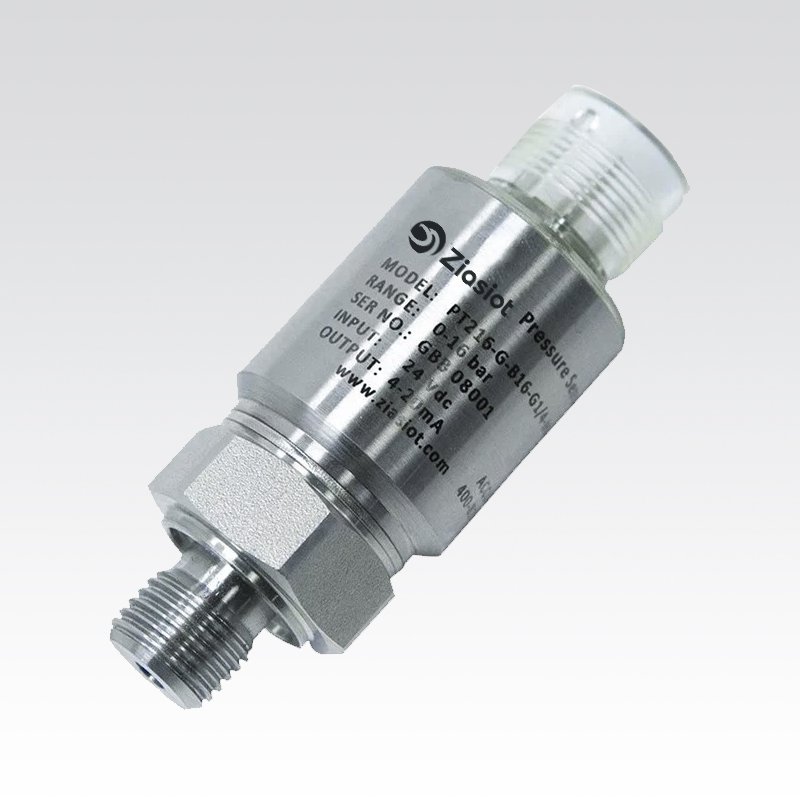

PT216 Hydraulic Pressure Transducer
PT216 Standard Silicon Pressure Transducer Transmitter is designed and manufactured with a high-precision diffused silicon pressure core and precision compensation technology. It has the characteristics of a wide measuring range, high precision and compact design, and is suitable for precise measurement and control of liquid and gas pressures in various fields.
The pressure accuracy is better than 0.5% level.
Compact stainless steel housing package.
Protection level IP65.
Multiple electrical and process connection options.
Application Area
Hydraulic and pneumatic control.
construction machinery.
Light industry, machinery, and metallurgy.
Industrial process and control.
Product Description
PT216 standard silicon pressure transducer transmitter is designed and manufactured with a high-precision diffused silicon pressure core and precision compensation technology. It features a wide measuring range, high precision, and a compact design, making it suitable for precise measurement and control of liquid and gas pressures in various fields.
Parameter
| Pressure range | -1~0 bar; 0~400 bar (-100~0 kPa; 0~40 MPa) | |||
| Type of pressure | Gauge pressure and absolute pressure | |||
| Measurement accuracy | 0.25% F.S./0.5% F.S. | |||
| Behaviour of electricity | Two-wire system | Three-wire system 0 ~ 10 V | three-wire system | three-wire system |
| Output signal | (4～20) mA | (0～10)V | (0～5)V | (0.5～4.5)V |
| Power supply | 6.5～32 Vdc | 12～32 Vdc | 10～32 Vdc | 5 Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| Electrical connection | M12 connector, Hessman, PACK connector, waterproof connector | |||
| Process connection | G1/4, G1/2, 1/4 NPT, 1/2 NPT, M20x1.5, R1/4, R1/2, G1/4, etc. | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | (-20～80)℃ | |||
| The protection grades | IP65 | |||
| Response rate | Overload pressure ≤ 10 msec | |||
| Long-term stability | 0.2% FS/year | |||
