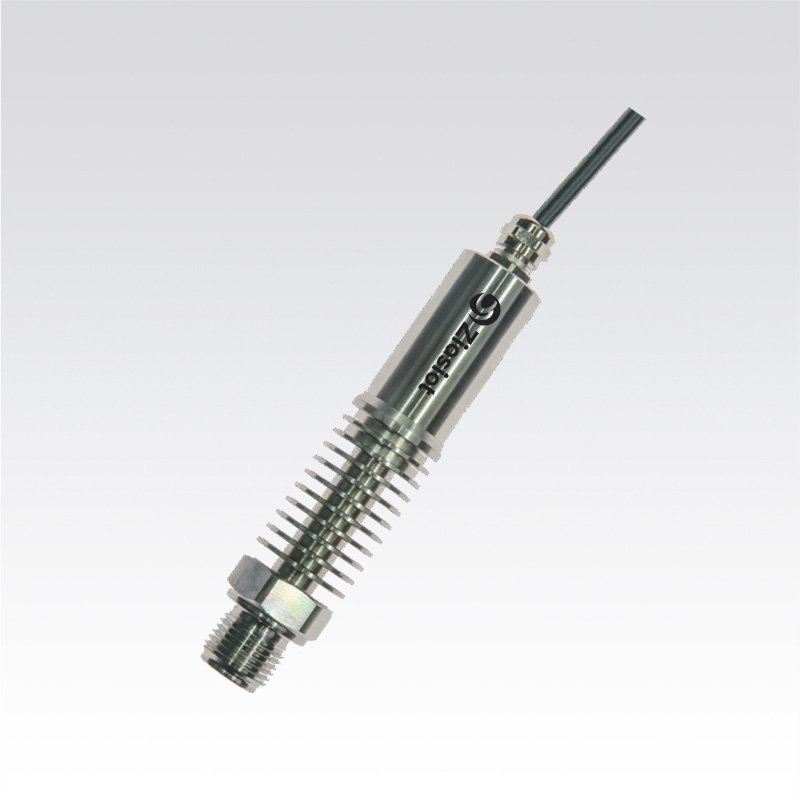

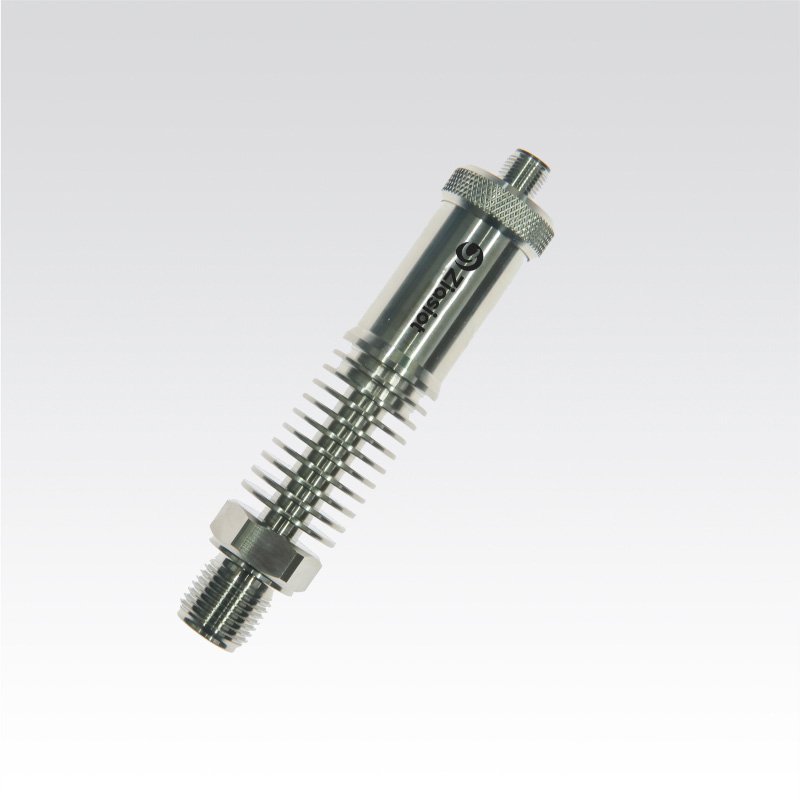

PT216 High Temperature Silicon Pressure Sensor Transducer

The measurement accuracy is better than 0.5 level.
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Heat dissipation structure design can withstand medium and high temperatures
Wide working temperature range

Measurement of high-temperature fluids such as steam and hot oil
Measurement and control of the boiler industry
Medical high-temperature and high-pressure disinfection

In order to provide stability under 300°C, the PT216HT series High Temperature Pressure Sensor Transducer uses an imported thermo-stability detecting element. Additionally, it employs cool lasing technology for welding, effectively preventing heat conduction by incorporating cooling ribs between the electrical circuit of the amplifier and the pressure sensor chips.

High-performance silicon piezoresistive pressure-filling cores are used in pressure-sensitive cores. The sensor’s millivolt signal is transformed by the internal ASIC into a standard voltage, current, or frequency signal that can be immediately attached to a PLC, control device, intelligent instrument, or computer interface card. Transmission over long distances is possible using the current output mode. It can function in corrosive environments, is lightweight and compact, and has a stainless steel sealing structure. The product is easy to install and has high anti-vibration and anti-impact performance.
