Features
Cavitless corrugated flat film
A variety of housings are available
Protection level IP68
Multiple electrical connection options
Sanitary surface roughness Ra < 0.38 μm can be selected
Application Area
Food and beverage industry
Medical pharmaceutical industry
Biotechnology
Pigment, spraying
Chemical industry and paper industry
Product Description

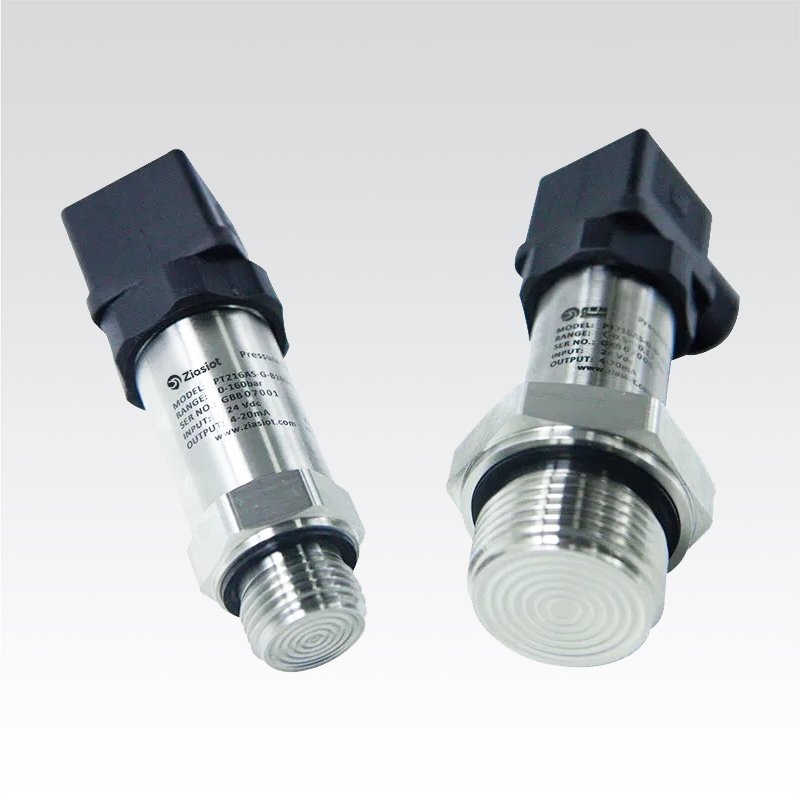

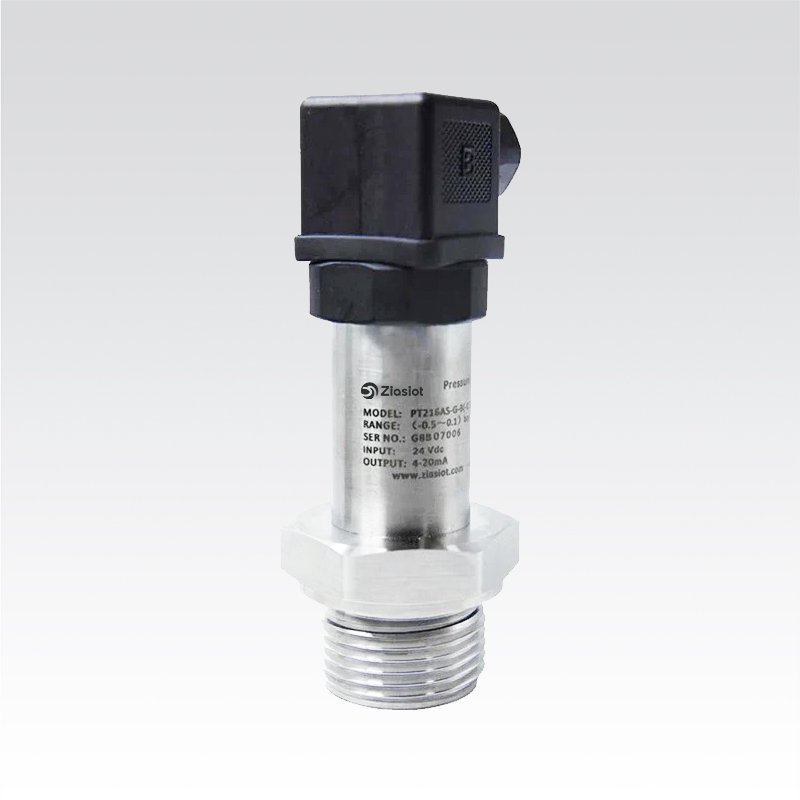

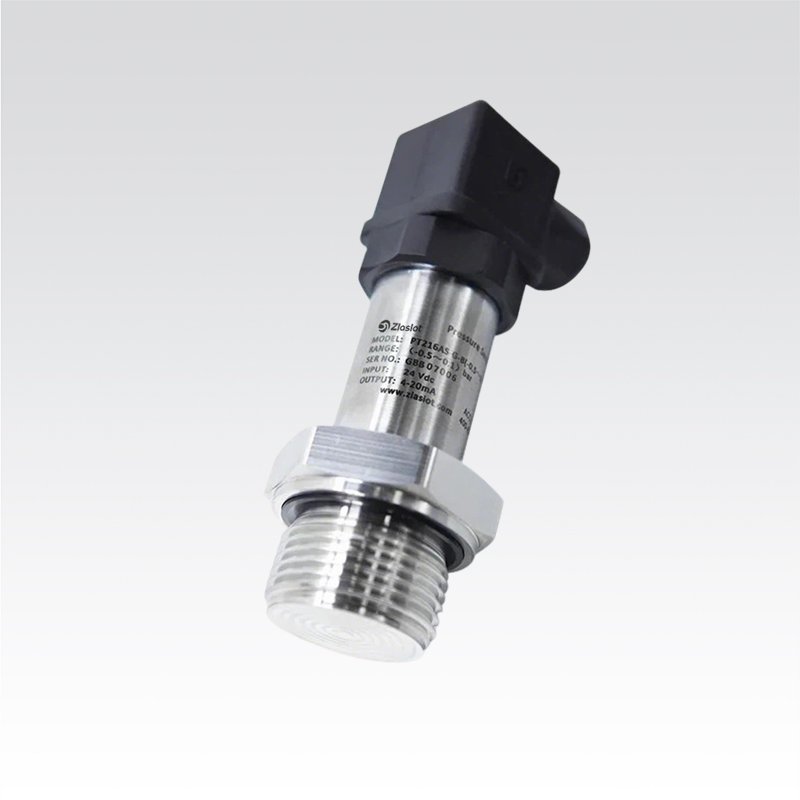

PT216 Flush Diaphragm Silicon Pressure Sensor Transmitter combines proven thin film technology with diaphragm seal expertise. Satisfying stringent requirements for cleanliness, this model is an ideal choice for any sanitary application.
This series of products uses a diffused silicon pressure core as a sensitive element and a 316L stainless steel diaphragm isolation. This series of products has the characteristics of stainless steel welded structure, high precision, non-cavity corrugated flat film, a wide measuring range, and a field display. Widely used in food, medicine, and other health industries, or fluid pressure measurement and control with particles.
Dimension
Parameters
| Product mix | Preposition type | Flat film type/sanitary type |
| Pressure range | -1 ~ 0 bar to 0 ~ 400 bar | -1 ~ 0 bar to 0 ~ 40 bar (specific pressure shall not exceed PN value of pressure interface) |
| Type of pressure | Gauge pressure and absolute pressure | |
| Measurement accuracy | Grade 0.5, Grade 0.25, Grade 0.1 | |
| Behaviour of electricity | Two-wire system | |
| Output signal | (4～20) mA | |
| Power supply | 12～30 Vdc | |
| Load resistance | ＜(U-12)/0.02 | |
| electrical connection | M12 connector, Hessmann, waterproof joint | |
| Ambient temperature | (-40～80)℃ | |
| Working temperature | Direct connection type: (-20～125)℃, heat sink type: (-20～160)℃, | |
| The protection grades | IP67 | |
Wetted Part
E-Connection
Order Code
