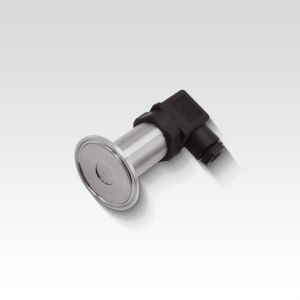

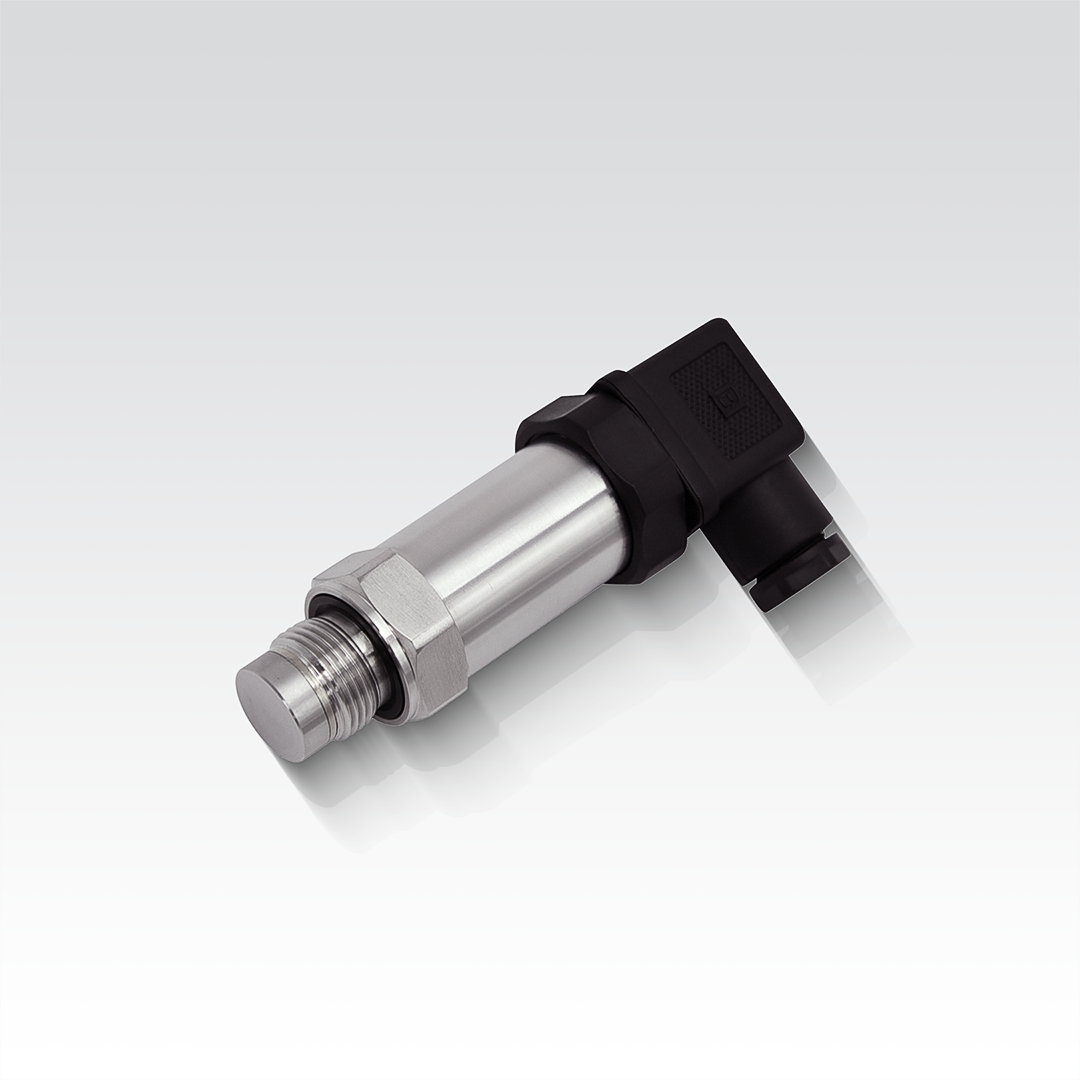

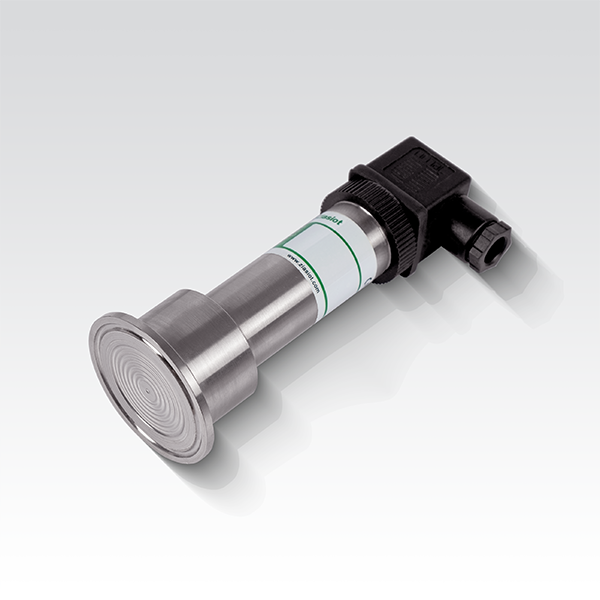

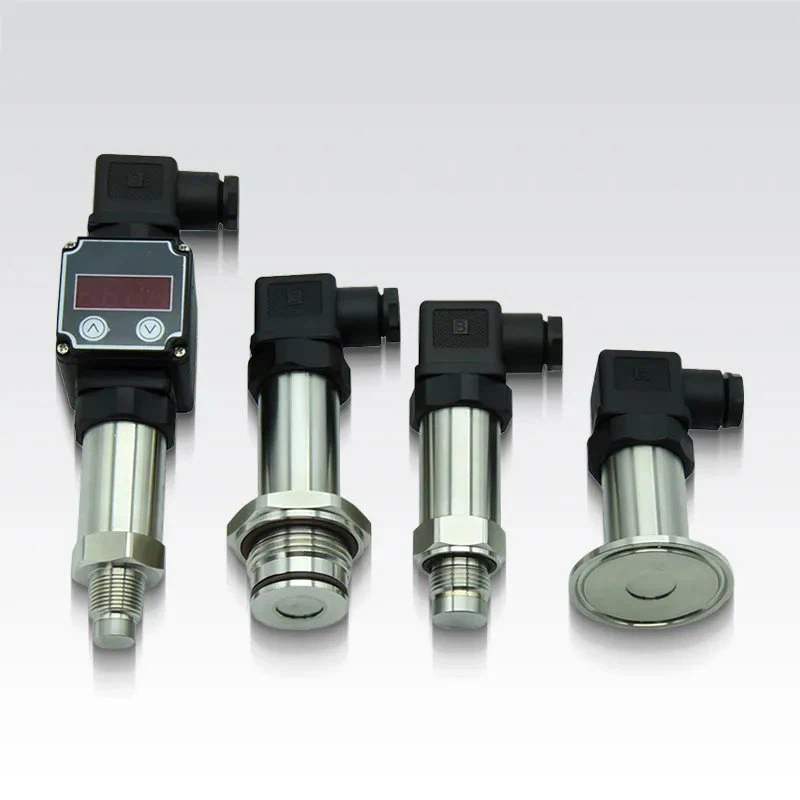

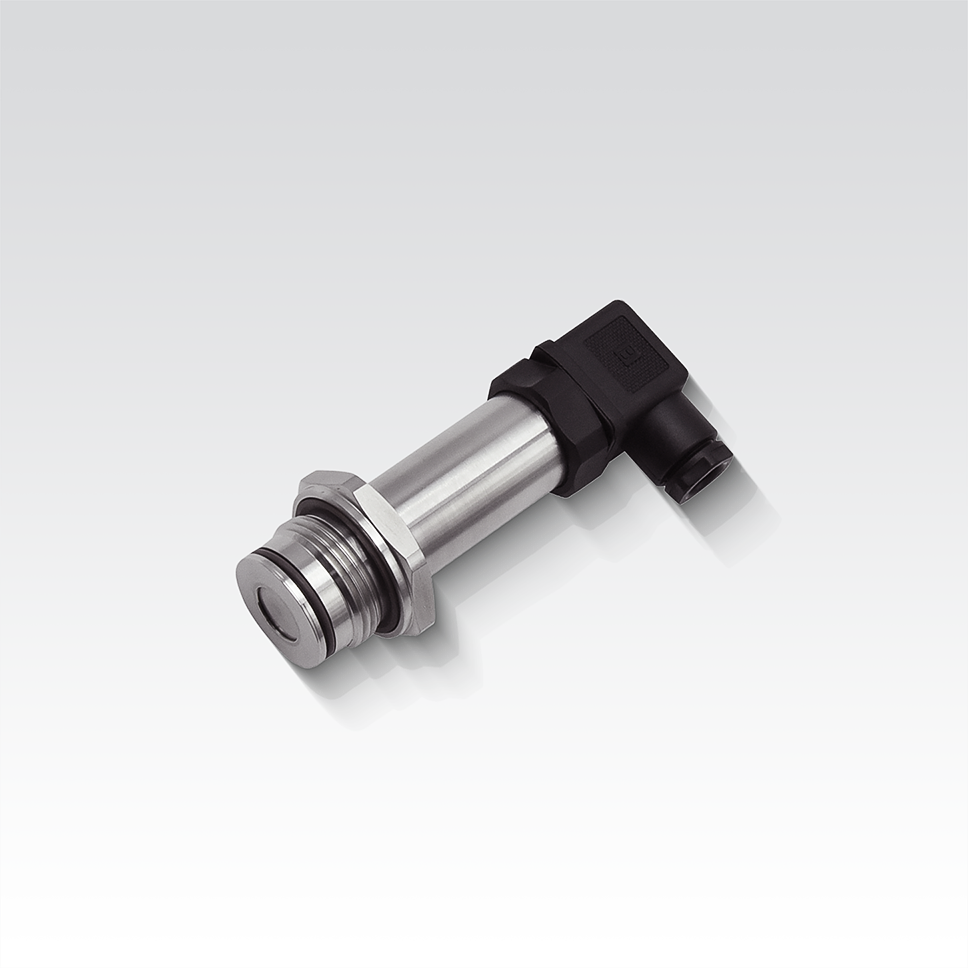

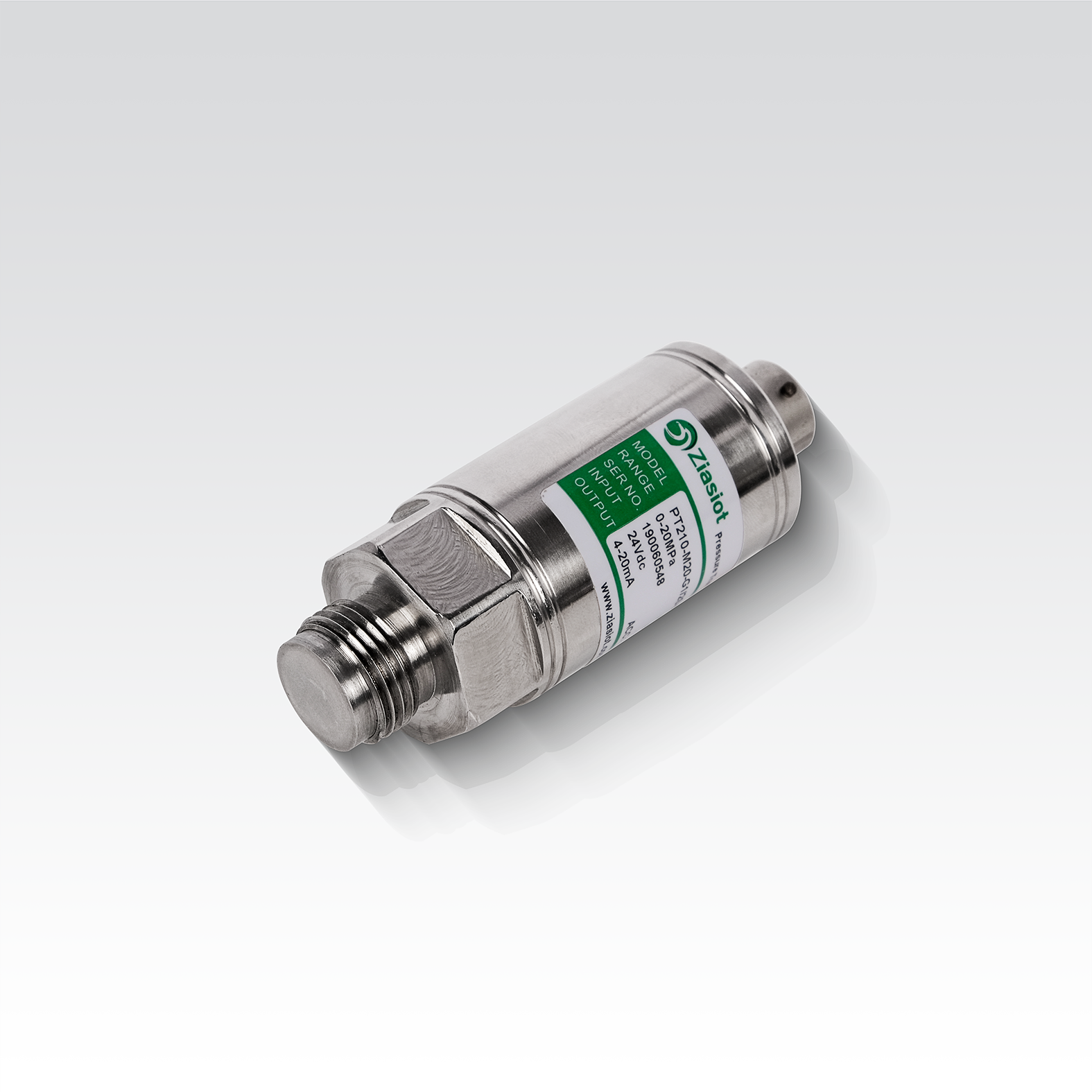

PT210 Sanitary Pressure Transmitter
PT210AS Sanitary Pressure Transmitters are designed for the measurement and control of fluid pressure with high viscosity or particles, by using strain sensor core,reasonable structural design and strict quality standards ensure the high reliability and stability of the products. This series of products has the characteristics of stainless steel welded structure, cavity-free full flush film, wide measuring range and field display.
Features
The measurement accuracy is better than 0.5 level.
0 ~ 10 MPa to 0 ~ 200 MPa
Full flat dura mater tablet
high reliability
Application Area
Industrial process and control
Environmental protection and dust engineering
Chemical industry and paper industry
Sewage treatment industry
Product Description
PT210 sanitary pressure transmitters are sanitary special pressure transmitters designed and produced by using strain sensor core,Reasonable structural design and strict quality standards ensure the high reliability and stability of the products. This series of products has the characteristics of stainless steel welded structure, cavity-free full flush film, wide measuring range and field display. Widely used in the measurement and control of fluid pressure with high viscosity or particles
Technical Parameters
| Pressure range | 0～10MPa to 0-200MPa | |||
| Type of pressure | manometer pressure | |||
| measurement accuracy | 0.5%0.25%F.S | |||
| behaviour of electricity | Two wire system | Three-wire system 0 ~ 10v | three-wire system | three-wire system |
| Output signal | (4～20)mA | (0～10)V | (0～5)V | (0.5～4.5)V |
| Power supply | 6.5～32Vdc | 12～32Vdc | 10～32Vdc | 5Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| Electrical connection | M12 connector, hessman, PACK connector, waterproof connector | |||
| Overload pressure | 1.5 times rated pressure | |||
| Medium temperature | (-20～85)℃ | |||
| Electrical temperature | (-20～80)℃ | |||
| The protection grades | IP65 | |||
| Response rate | ≤10msec | |||
| Long term stability | 0.2%FS/year | |||
