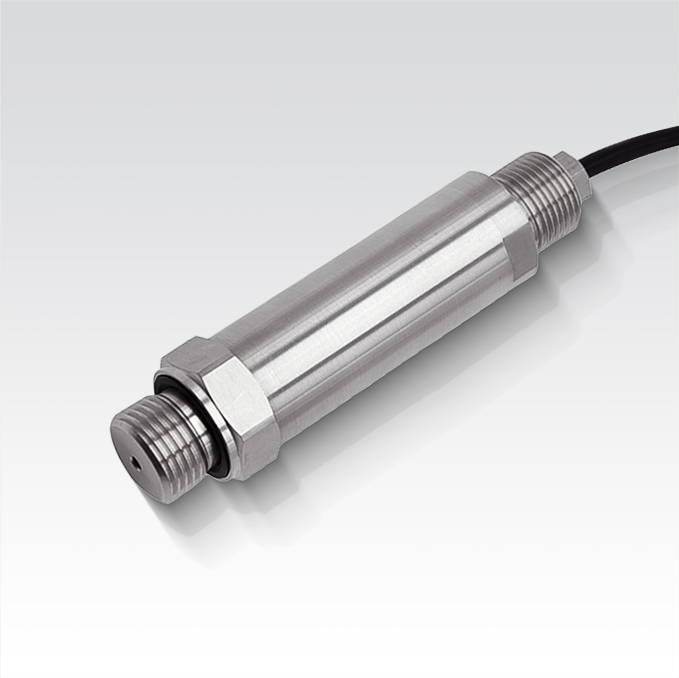

PT210 Micro Intrinsically Safe Pressure Transmitter
PT210FS Micro Explosion-Proof Intrinsically Safe Strain Gauge Pressure Transmitter adopts imported 17-4PH and excellent strain gauges as elastic elements, and the outer casing is a special explosion-proof casing, which has wide temperature compensation and good measurement accuracy, and has anti-polarity protection and instantaneous overcurrent, voltage and anti-interference protection measures.
Features
The pressure accuracy is better than 0.5% level.
4 ~ 20 mA output signal.
Protection level IP65.
Selection of multiple thread pressure interfaces.
Intrinsically safe type.
Small outshell.
Application Area
Petrochemical and natural gas control system.
drilling platform.
Measurement and control of explosion-proof industrial processes.
Product Description
PT210 intrinsically safe pressure transmitter adopts imported 17-4PH and excellent strain gauges as elastic elements, and the outer casing is a special explosion-proof casing, which has wide temperature compensation and good measurement accuracy, and has anti-polarity protection and instantaneous overcurrent, voltage, and anti-interference protection measures.
Technical Parameters
| Pressure range | (0～1) MPa to (0～200) MPa |
| Type of pressure | manometer pressure |
| Pressure accuracy | Class 0.5, class 0.25 |
| Output signal | (4～20) mA |
| Power supply | 12～30 Vdc |
| Electrical connection | Direct outgoing line |
| Overload pressure | 1.5 times rated pressure |
| Working temperature | (-20～80) ℃ |
| Protection grade | IP65 |
| Intrinsically safe grade | ExiaⅡCT4 |
| Long term stability | 0.2% FS/year |
Ordering Guide
