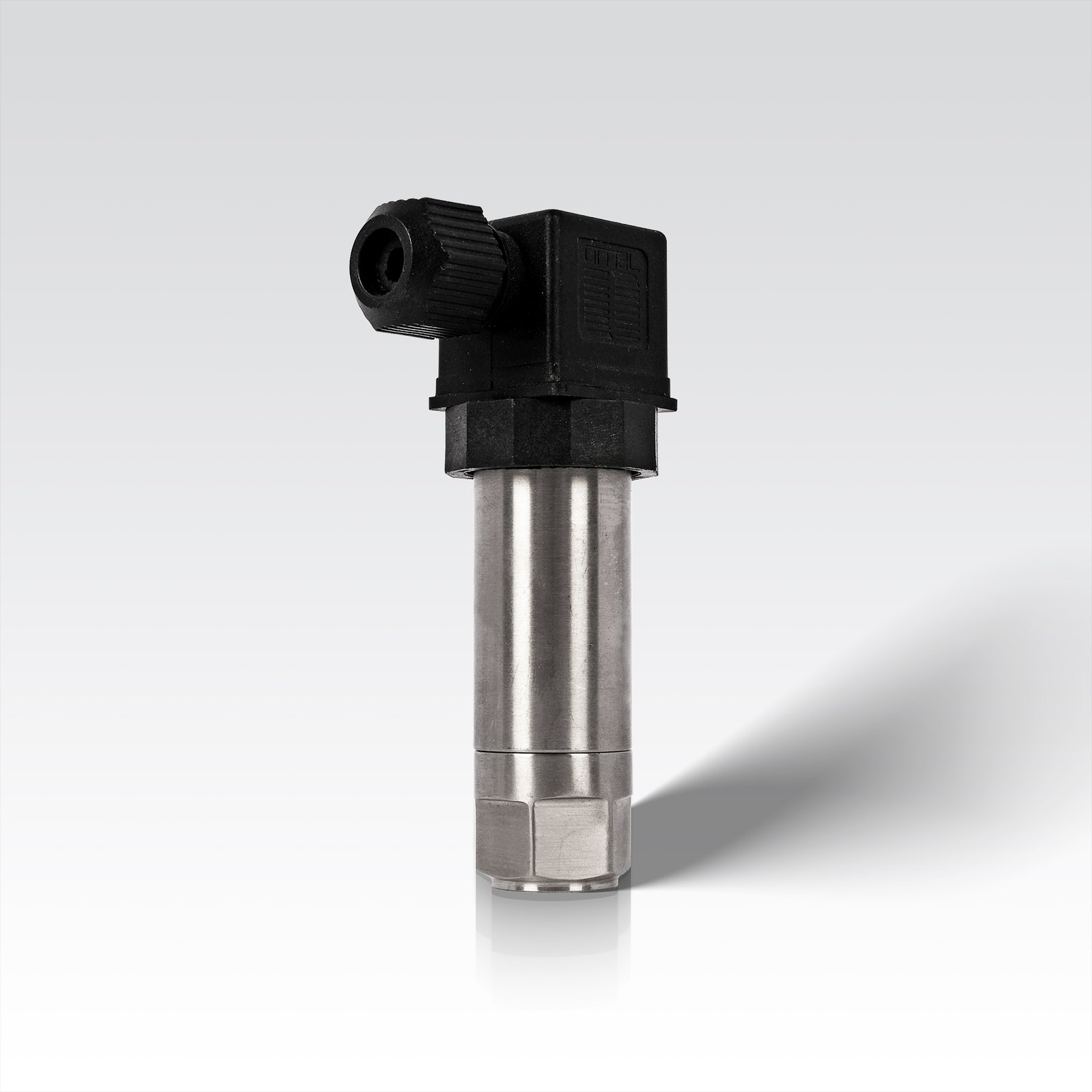

PT210 High Pressure Transmitter
PT210CS High Pressure Transmitter is specially designed for high-pressure measurement, with the highest measurement pressure up to 800 MPa, and can be applied to all kinds of media compatible with stainless steel 17-4PH material. The sensor core base is made of integral stainless steel, without any welding or sealing ring structure, and without leakage risk, which can ensure meeting the requirements of customers for production safety and reliability.
Features
Accuracy can be 0.25% F.S
0~1600 bar; 0~8000 bar
One-piece structure
High load cycle, long service life, and reduced the cost of repeated calibration
Application Area
Structure of test platform
Water jet cutting
Autoclave and cleaning
Oil drilling
Product Description
PT210CS and PT210CH are specially designed for high-pressure measurement; the max measurement pressure can be as high as 8000 bar, and they can be applied to various media compatible with stainless steel 17-4PH. The sensor core base is made of integral stainless steel, without any welding or sealing ring structure, and has no leakage risk, which can ensure it meets the requirements of customers for production safety and reliability.
Technical Parameters
| Pressure range | 0～800 MPa | |||
| Type of pressure | manometer pressure | |||
| measurement accuracy | 0.5% 0.25% F.S. | |||
| behaviour of electricity | Two-wire system | Three-wire system 0 ~ 10 V | three-wire system | three-wire system |
| Output signal | (4～20) mA | (0～10)V | (0～5)V | (0.5～4.5)V |
| Power supply | 6.5～32 Vdc | 12～32 Vdc | 10～32 Vdc | 5 Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| Electrical connection | M12 connector, Hessmann, PACK connector, waterproof connector | |||
| Overload pressure | 1.5 times rated pressure | |||
| Medium temperature | (-20～85)℃ | |||
| Electrical temperature | (-20～80)℃ | |||
| The protection grades | IP65 | |||
| Response rate | ≤10 msec | |||
| Long term stability | 0.2% FS/year | |||
