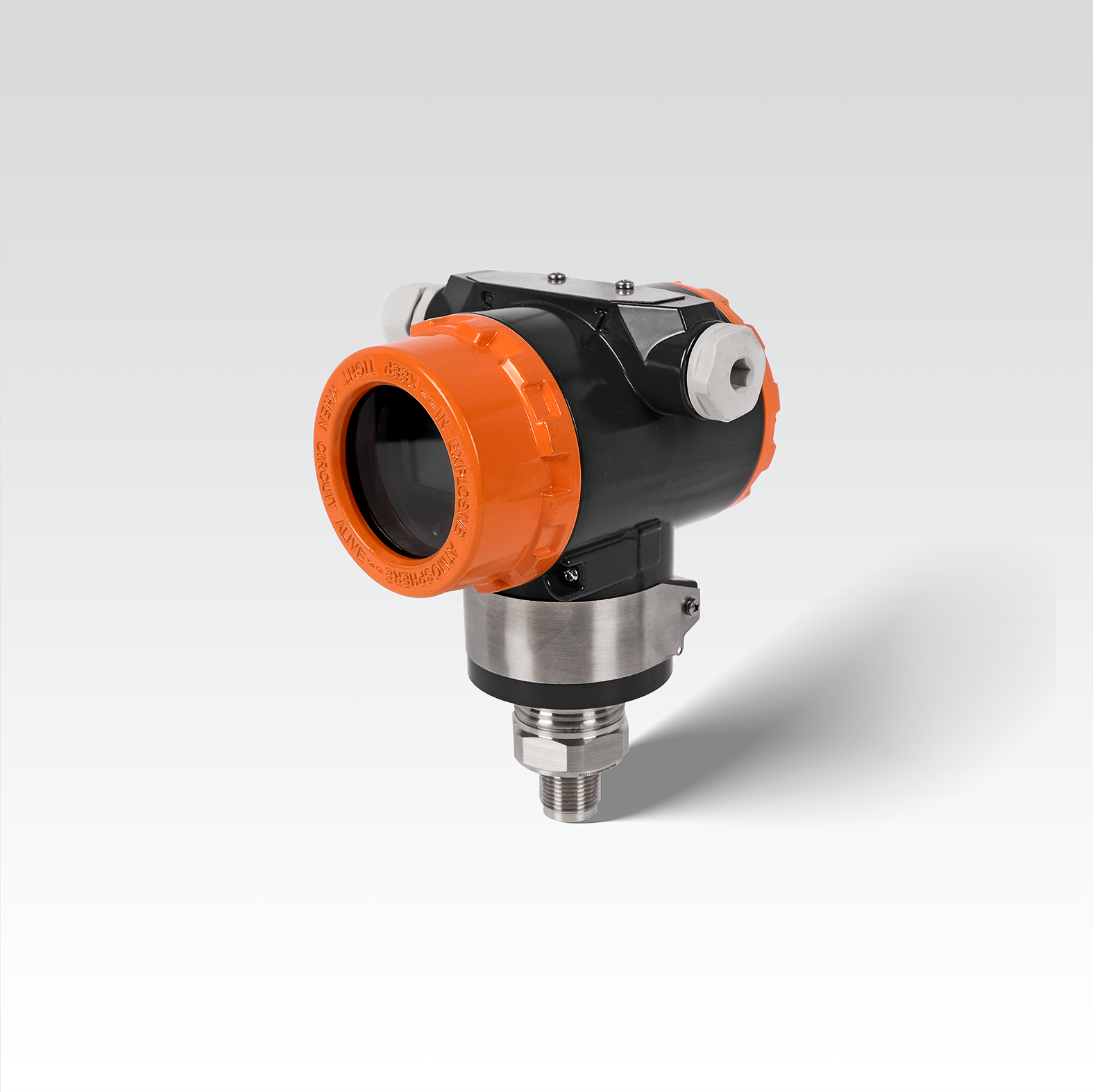

PT210 High Pressure Digital Pressure Transmitter
PT210CH High Pressure Digital Pressure Transmitter with LED display is specially designed for high-pressure pressure measurement, with the highest measurement pressure up to 800 MPa, and can be applied to all kinds of media compatible with stainless steel 17-4PH material. The sensor core base is made of integral stainless steel, without any welding or sealing ring structure, and without leakage risk, which can ensure meeting the requirements of customers for production safety and reliability.
Features
The measurement accuracy is better than 0.5 level.
0 ~ 160 MPa to 0 ~ 800 MPa
High load cycle, long service life and low cost of repeated calibration
Integrated mechanism
Application Area
Structure of test platform
Water jet cutting
Autoclave and cleaning
oil drilling
Product Description
The high-pressure digital pressure transmitter is specially designed for high-pressure pressure measurement, with the highest measurement pressure up to 800 MPa, and can be applied to all kinds of media compatible with stainless steel 17-4PH material. The sensor core base is made of integral stainless steel, without any welding or sealing ring structure, and without leakage risk, which can ensure meeting the requirements of customers for production safety and reliability.
Technical Parameters
| Pressure range | 0~1600 bar; 0~8000 bar (0~160 MPa; 0~800 MPa) | |||
| Type of pressure | Gauge pressure | |||
| measurement accuracy | 0.5% 0.25% F.S. | |||
| behaviour of electricity | Two-wire system | Three-wire system 0 ~ 10 V | three-wire system | three-wire system |
| Output signal | (4～20) mA | (0～10)V | (0～5)V | (0.5～4.5)V |
| Power supply | 6.5～32 Vdc | 12～32 Vdc | 10～32 Vdc | 5 Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| Electrical connection | M12x 1 (4-pin), Hirschmann, waterproof connector | |||
| Overload pressure | 1.5 times rated pressure | |||
| Medium temperature | (-20～85)℃ | |||
| Process connection | G1/2 male, M20x1.5 male or female, M16x1.5 female, etc. | |||
| The protection grades | IP65 | |||
| Response rate | ≤10 msec | |||
| Long-term stability | 0.2% FS/year | |||
Ordering Guide
