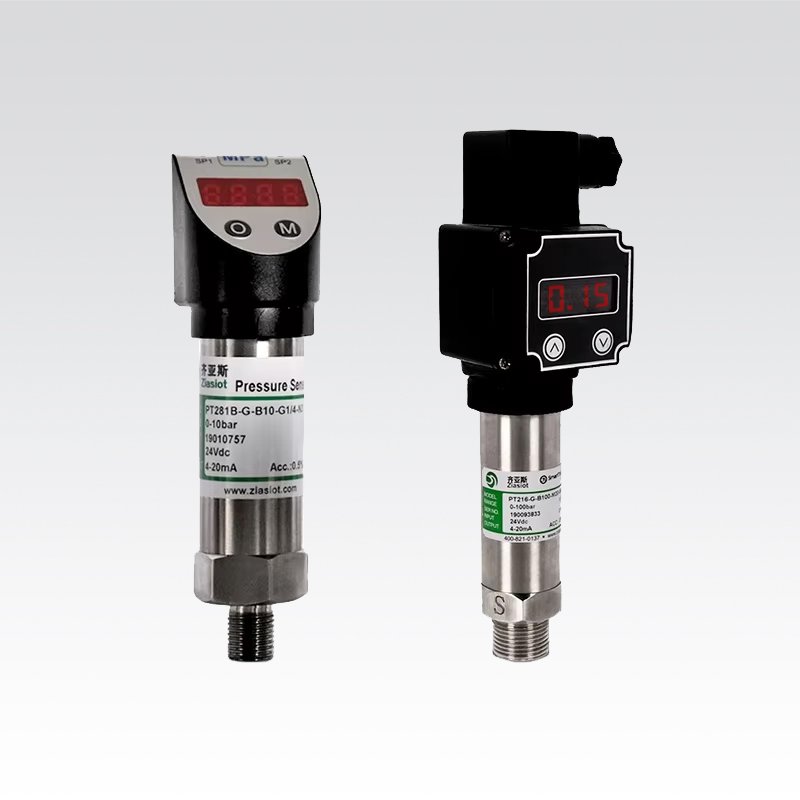

PT210 Digital Pressure Transmitter
PT210 digital pressure transmitter has LED pressure display and adopts superior 17-4PH material as elastomer and imported strain gauge, it can convert gauge pressure of measured medium into standard signal output of voltage and current. This series features on good anti-interference,wide working temperature range and superior long-term stability
Features
Accuracy superior to±0.5%FS
Imported strain gauge
0~10bar or 0~4000bar
Stainless steel encapsulation
Multiple electrical connection
Protection grade IP65
Application Area
Industrial process detection&control
Hydraulic System
Industrial mechinery manufacturing
General industrial applications
Product Description
PT210 digital pressure transmitter has LED pressure display and adopts superior 17-4PH material as elastomer and imported strain gauge, it can convert gauge pressure of measured medium into standard signal output of voltage and current. This series features on good anti-interference,wide working temperature range and superior long-term stability
Technical Parameters
| Pressure Range | 0～10 bar,0～600bar | ||
| Accuracy | ±0.5% F.S | ||
| Overload Capactity | 1.5 times rated pressure | ||
| Breakdown Pressure | 3 times rated pressure | ||
| Pressure Type | gauge pressure | ||
| Electrical Environmental Temp | -25℃～ 85 ℃ | ||
| Mechanical Shock | 100g/1msec | ||
| Mechanical Vibration | ≤20g(15-2000Hz) | ||
| Temperature Drift | ≤0.04% /℃ | ||
| Compatible Medium | all corrosive medium compatible with material1Cr18Ni9Ti and material 17-4PH | ||
| Electrical Performance | 2-wire | 3-wire | 3-wire |
| Output | 4-20mA | 0-10 V | 0-5V |
| Response Time | ≤3msec | ≤10msec | ≤10msec |
| Supply | 10-30VDC | 12-30VDC | 10-30VDC |
| Overload Resistance | (U-10)/0.02Ω | ＞25KΩ | ＞25KΩ |
| E-Connection | lead-wire,M12×1 round connector,Hirschmann connector | ||
| Ingress Protection | IP65 | ||
| Pressure Connector | G1/4,1/4NPT,G1/2,M20 | ||
Selecting Guid
