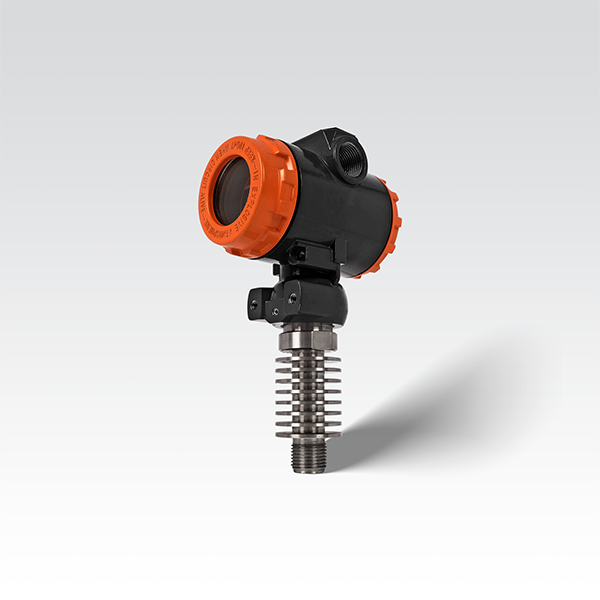

PT216 High Temp Pressure Transducer with Indicator
PT216HT High Temperature Silicon Pressure Sensor Transducer is of all stainless steel structure, and the imported high temperature resistant pressure sensor is selected as the signal measurement sensitive element. The measured medium pressure is transmitted to the sensor through the heat dissipation structure on the transmitter, and the sensor probe can work stably at 200℃ for a long time. This product is widely used in the measurement and control of liquid and steam pressure in high-temperature fields.
Features
The measurement accuracy is better than 0.5 level.
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Heat dissipation structure design can withstand medium and high temperatures
Wide working temperature range
Application Area
Measurement of high-temperature fluids such as steam and hot oil
Measurement and control of the boiler industry
Medical high-temperature and high-pressure disinfection
Product Description
PT216HH and PT216HT high-temp. Pressure Transducers with an indicator are medium- and high-temperature pressure sensors, which is of all stainless steel structure and adopt an imported high-temperature-resistant pressure sensor as the signal measurement sensitive element; the pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the transmitter. The sensor probe can work stably for a long time at a high temperature of 200℃. This product is widely used in liquid and vapor pressure measurement and control in the high-temperature field.
Products Parameters
| Model | PT216HT/ PT216HH |
| Power supply | 24 VDC |
| Output single | 4~20 mA, 1~5 V, 0~10 V, RS485 |
| Measuring range | -1~0 bar; 0~400 bar (-100~0 kPa; 0~40 MPa) |
| Process connection | G1/4, G1/2, 1/4 NPT, 1/2 NPT, M20x1.5, R1/4, R1/2, G1/4, etc. |
| Medium temperature | -40~300℃ |
| Environment temperature | -40~85℃ |
| Measuring media | Gaseous, Liquid, Water |
| Pressure type | Gauge pressure, Absolute pressure |
| Accuracy | 0.1% F.S., 0.25% F.S., 0.5% F.S. (standard) |
| Zero tempe drift | ±0.03% F.S./℃ |
| E connection | M12x 1 (4-pin), Hirschmann, PACK connector, waterproof connector |
| Overload | 200% F.S. |
| Long-term stability | ≤0.2% F.S./year |
| Inherent frequency | 5 kHz~650 kHz |
| Protection grade | IP65 |
Products Dimension
Process Connection
Ordering Guide
