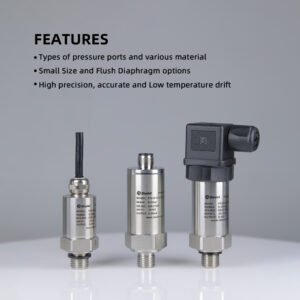

Features

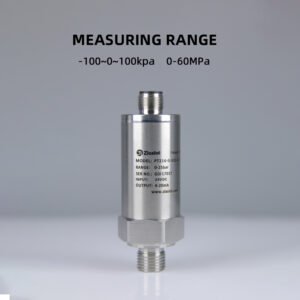

1. -0.1~0 MPa to 0~60 MPa measurement range
2. Multiple output signal selection
3. Available in absolute and gauge pressure types
4. Multiple electrical interface options
5. Multiple international universal process connections
Description

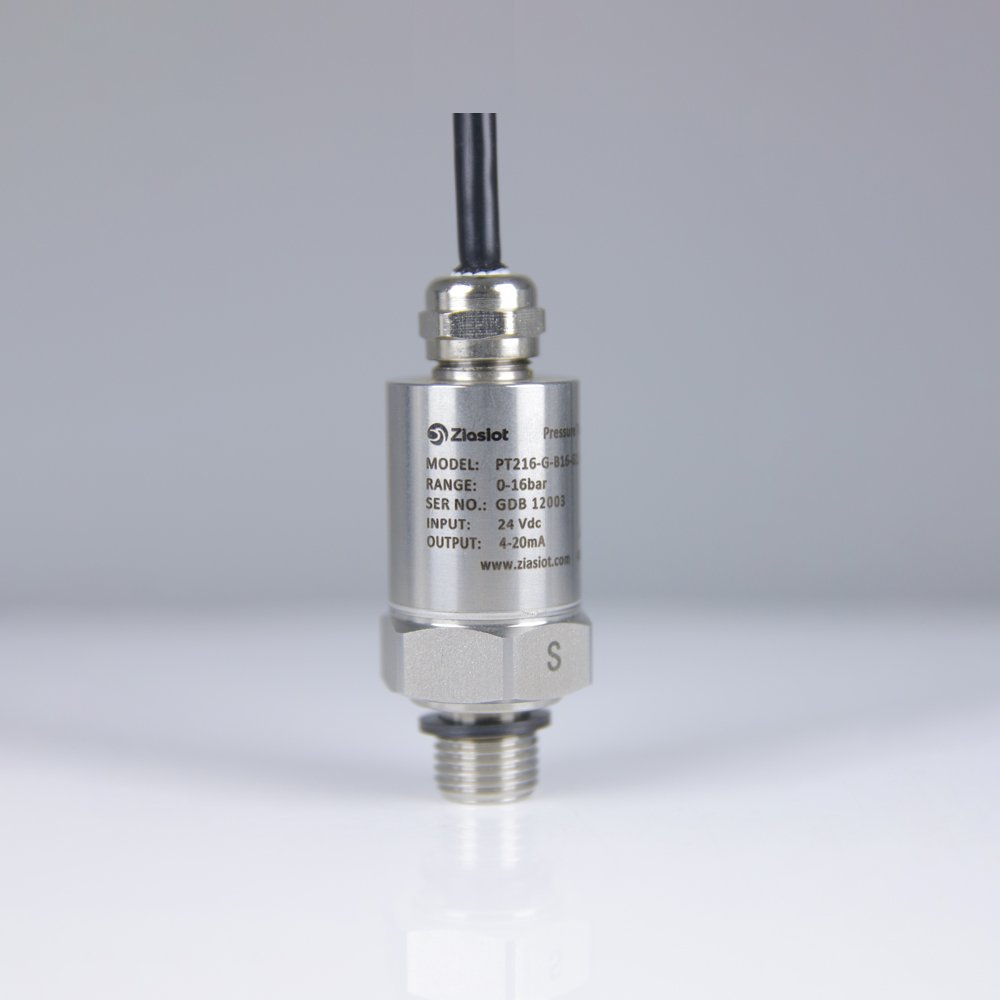

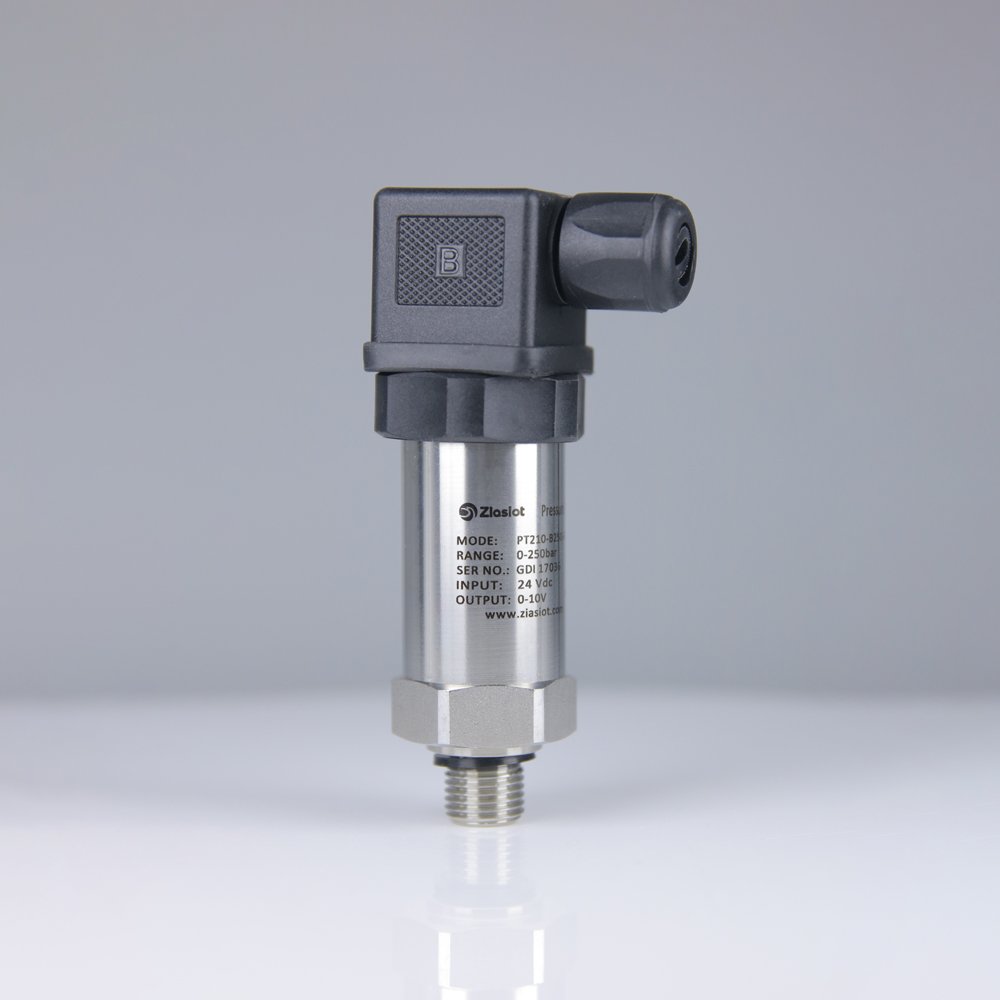

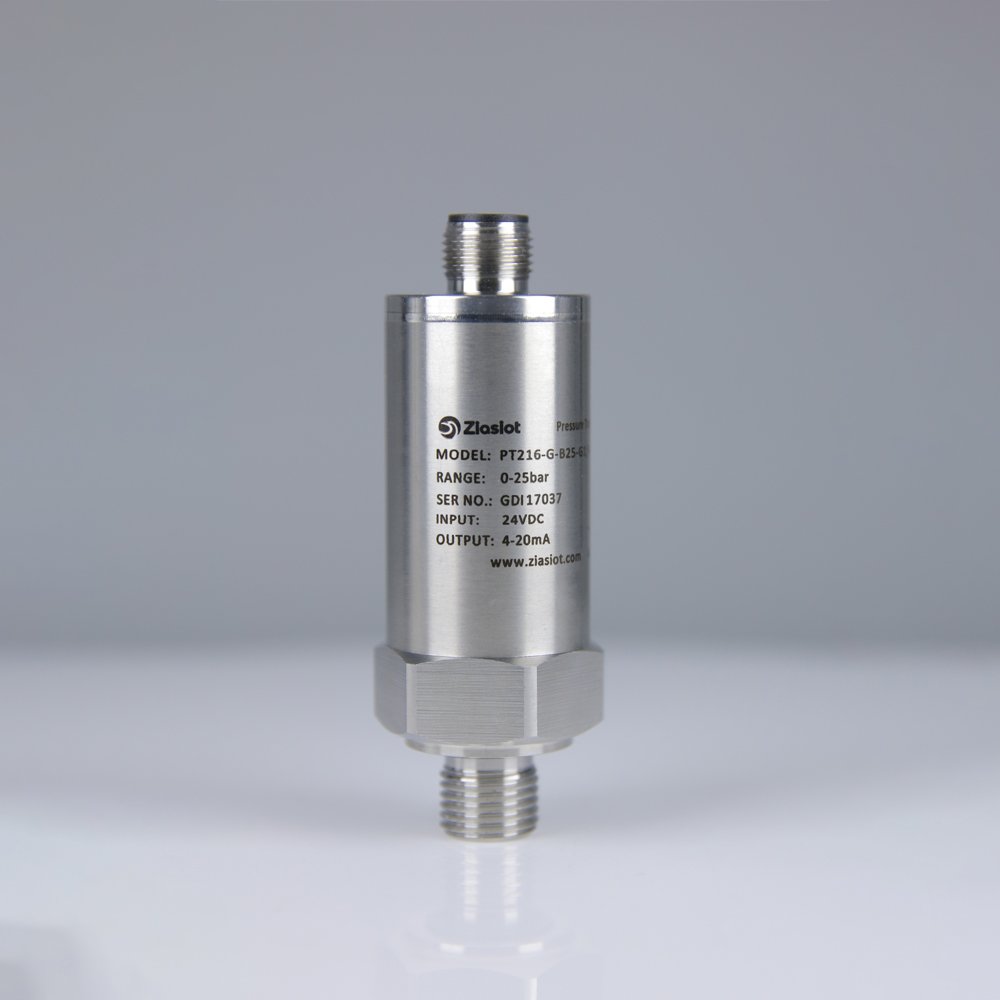

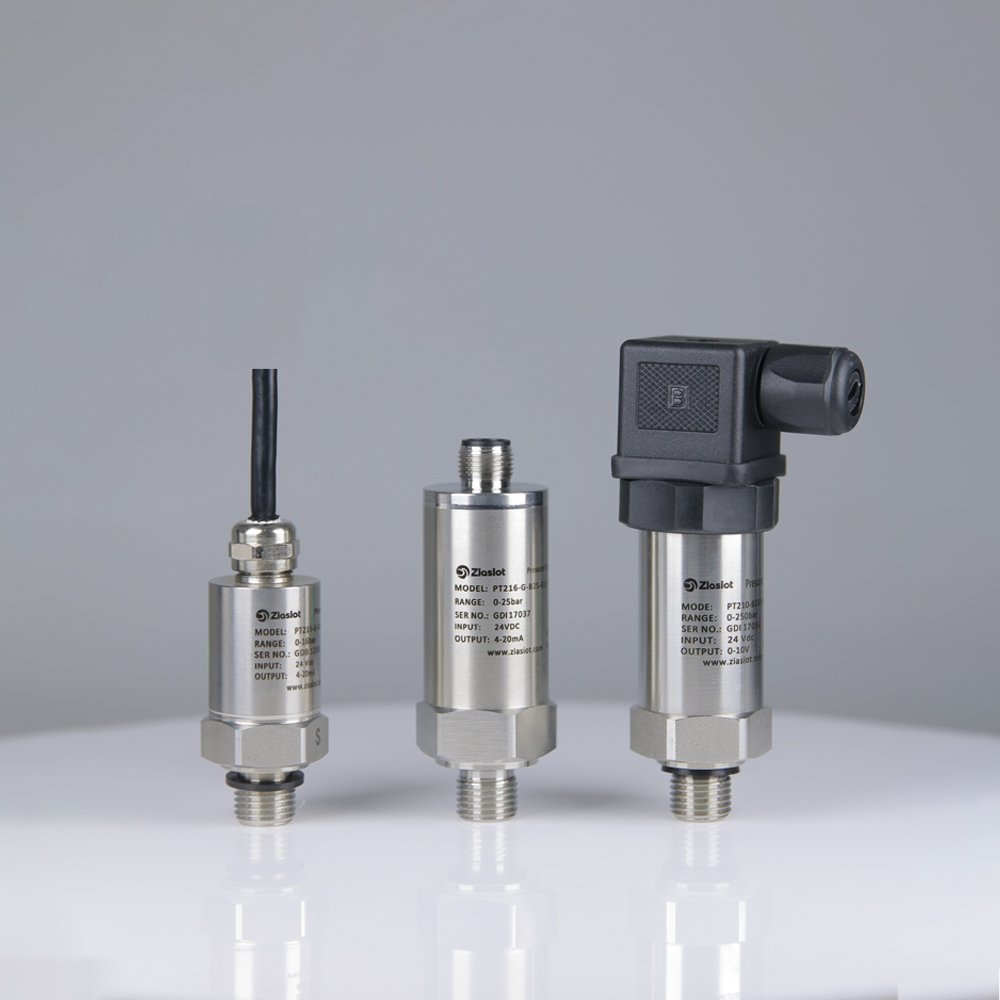

The PT216CC compact pressure sensors transducers are based on the silicon piezoresistive pressure core measurement principle. A compact all-stainless steel welded structure and extremely stable electronic components make it very strong and reliable.
Application
1. Hydraulic and pneumatic techniques
2. Pump and compressor
3. machine building
4. Ship and navigation
Parameter
| Pressure range | -0.1~0MPa to 0~60MPa | |||
| Type of pressure | Gauge pressure and absolute pressure | |||

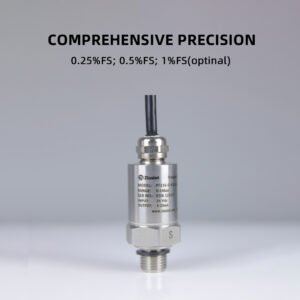

| Measurement accuracy | 0.25% F.S./0.5% F.S. | |||
| Behaviour of electricity | Two-wire system | Three-wire system 0 ~ 10 V | three-wire system | three-wire system |

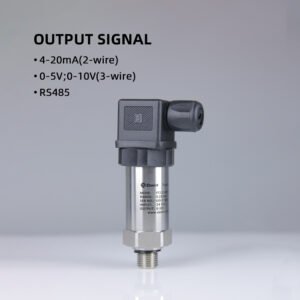

| Output signal | (4～20) mA | (0～10)V | (0～5)V | (0.5～4.5)V |
| Power supply | 6.5～32 Vdc | 12～32 Vdc | 10～32 Vdc | 5 Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| Electrical connection | M12 connector, Hessman, PACK connector, waterproof connector | |||
| Process connection | G1/4, G1/2, 1/4 NPT, 1/2 NPT, M20x1.5, R1/4, R1/2, G1/4, etc. | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | (-20～105)℃ | |||
| The protection grades | IP65 or IP67 | |||
| Response rate | Overload pressure ≤ 10 msec | |||
| Long-term stability | 0.2% FS/year | |||
Appearance Size
Ordering Guide
