Description

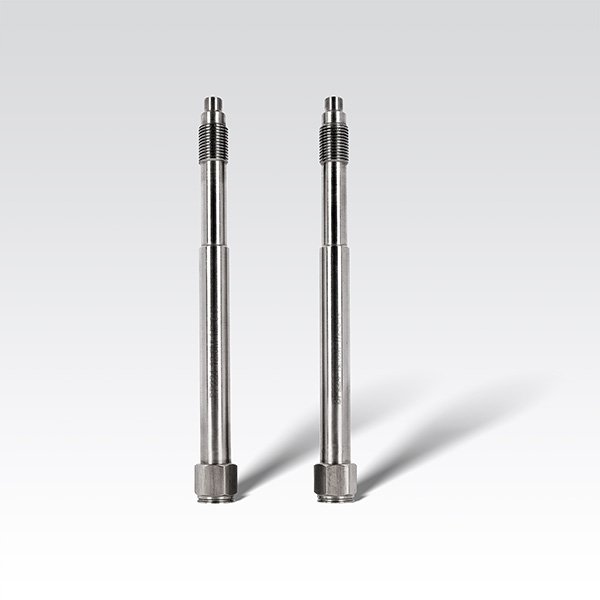

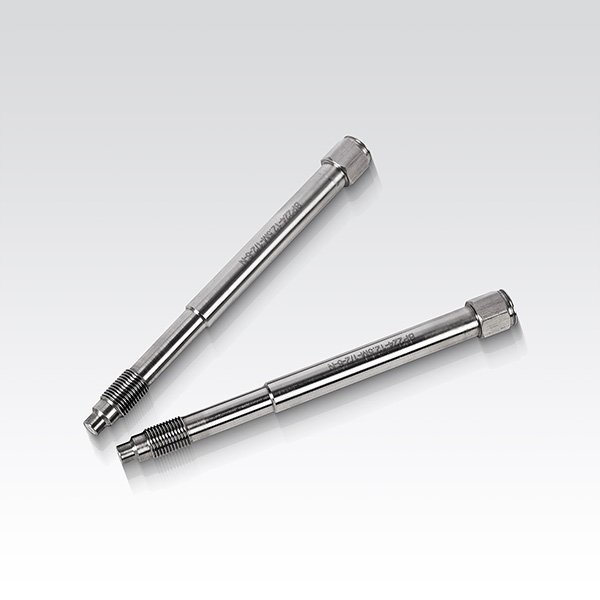

Rupture disks (means bust plug) BP224 series are made by 17-4PH in use of pressure releasing for emergency circumstances. The diaphragm will burst when pressure is overloaded to protect the machine and operator from explosion damage.
Features
· Burst pressure range: 0…2500 psi to 0…15000 psi
· Low installation and maintenance costs
· Reliable protection of personnel and machinery
· Robust sensing element
· Designed for extrusion applications
Application
Fiber machine, Rubber-plastic machine, Polymer machine, etc
Parameters
Item | Value |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Brand Name | Ziasiot |
Model Number | BP224 extruder rupture disk |
Product Name | Rupture disk |
Application | Extruder |
Thread size | 1/2-20UNF |
Length | 1.82″, 3.66″, 6″ |
Measure Range | 0…2500psi, 0…15000psi |
| Temperature range | 0…400℃ |
| Material | 304 stainless steel |
| Process connection | 1/2″-20UNF, M18×1.5, G3/4 or customized |
Dimension
