Features
1. 1 mm high accuracy
2. 3° beam angle
3. 80 GHz FM Continuous Wave
4. The protection level is IP68, pressure resistance can reach 0.1-0.5 MPa, and temperature resistance can reach 100 degrees
5. The measuring range can reach 120 meters, and the shell can be made of stainless steel & cast aluminum
6. Customization Support: OEM and ODM support
7. Multiple connection methods: flange, bracket, thread, clamp connection
8. Robust construction with materials such as PTFE, aluminum, and stainless steel, providing excellent durability and resistance to harsh environments (IP67 rating).
9. Customizable output signal, RS485 & 4-20mA can be selected, and Customizable Bluetooth function
Description
The RD80G series radar level sensor refers to frequency-modulated continuous wave (FMCW) radar products that operate at 76-81 GHz, supporting four-wire and two-wire applications. In multiple models, the maximum range of the product can reach 120 m, and the blind spot can reach 8 cm. Due to its higher operating frequency and shorter wavelength, it is particularly suitable for solid-state applications. The working method of transmitting and receiving electromagnetic waves through a lens has unique advantages in high-dust and harsh temperature environments (+200℃). The instrument provides a flange or threaded fixing method, making installation convenient and simple.
Parameter Details
- Measuring medium: Liquid is noncorrosive
- Measuring range: 0.05m-10/20/30/60/100m

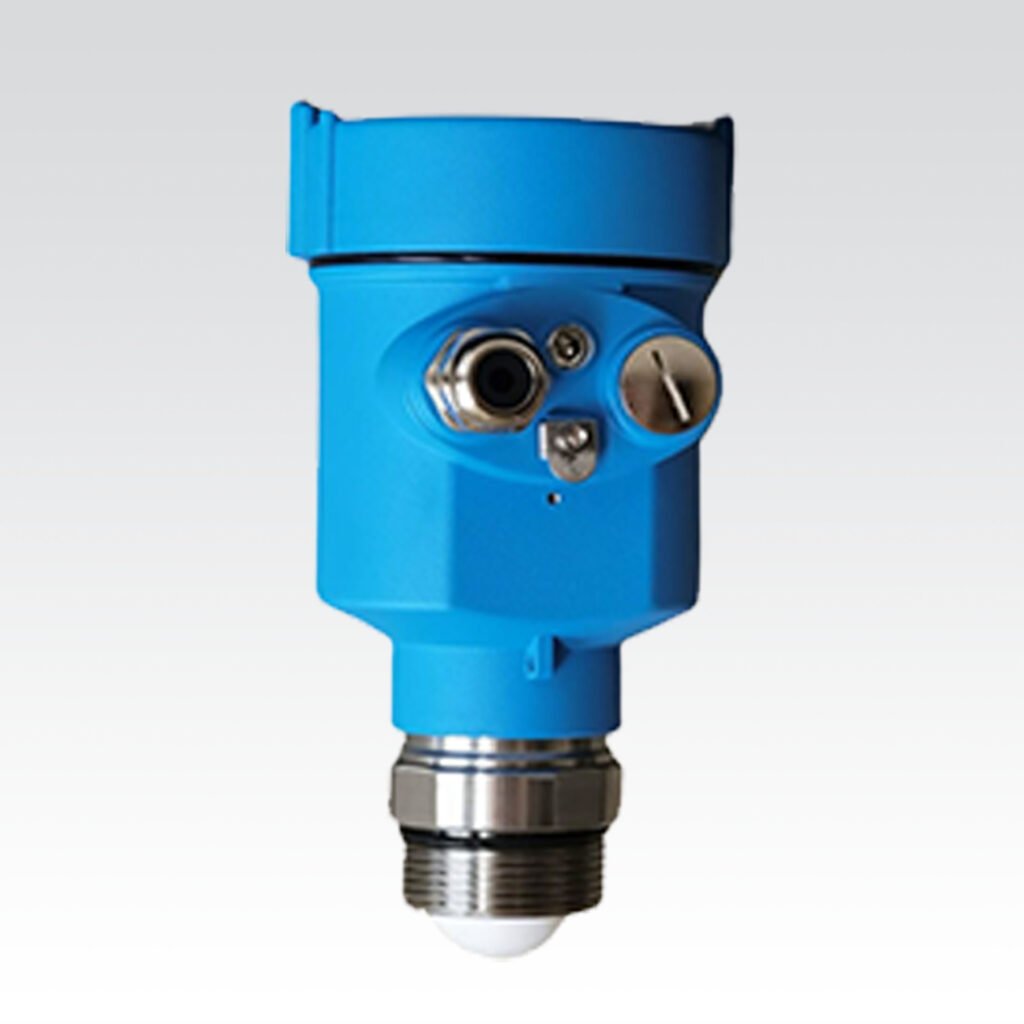

- Process connection: Thread G¾”A / ¾”NPT; Flange ≥DN40
- Process temperature: -40～80℃
- Process pressure: -0.1～0.3 MPa
- Antenna size: 32mm lens antenna
- Antenna material: PTFE
- Accuracy: ±1mm
- Protection level: IP67
- Center frequency: 123GHz
- Launch angle: 3°
- Shell: Aluminum/Plastic/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol; Four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART; Protocol/RS485/Modbus protocol
- Measuring medium: no-corrosive liquid, slightly corrosive liquid
- Measuring range: 0.05m-10/20/30/60/100m

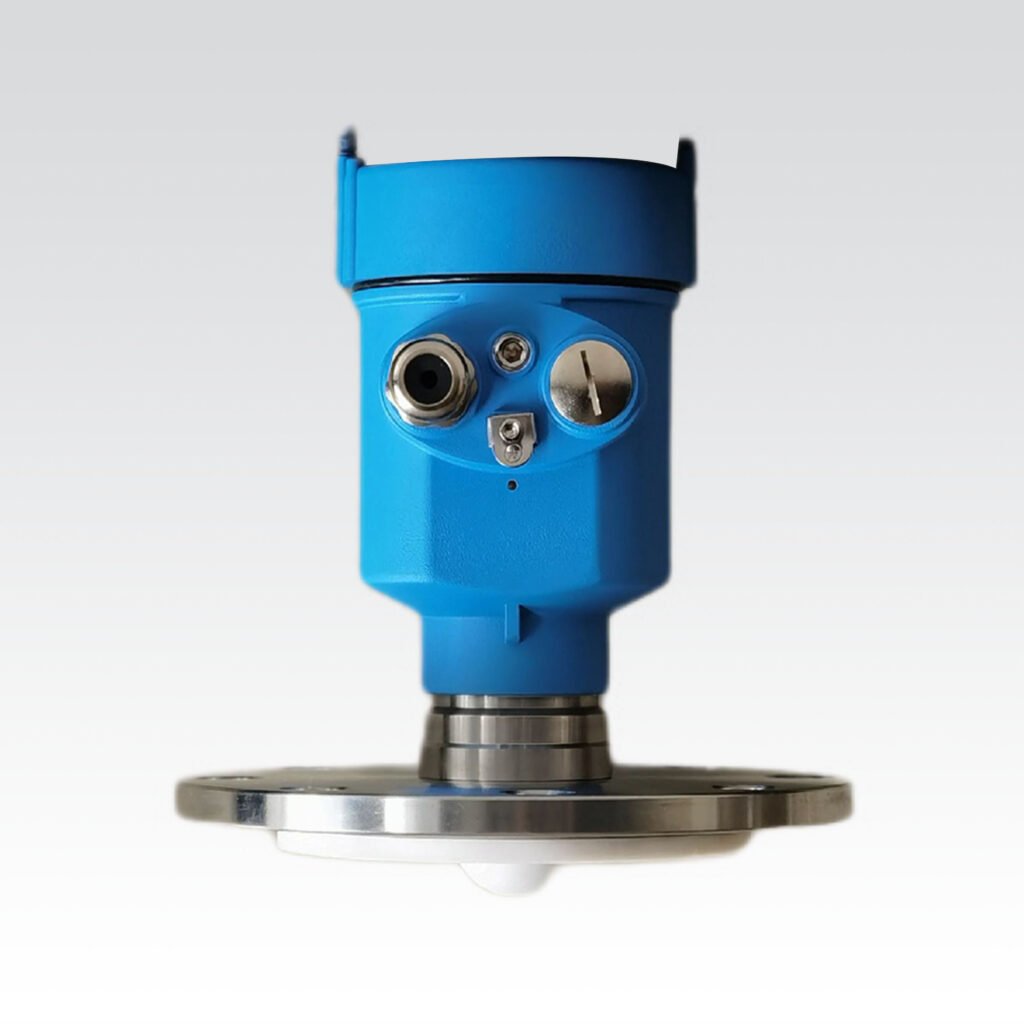

- Process connection: Flange DN80
- Process temperature: -40～110℃
- Process pressure: -0.1～1.6 MPa
- Antenna size: 32mm lens antenna
- Antenna material: PTFE
- Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
- Protection level: IP67
- Center frequency: 80GHz Launch angle: 3°
- Shell: Aluminum/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol; Four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol
- Measuring medium: strongly corrosive liquid, steam, foam
- Measuring range: 0.05m-10/20/30/60/100m

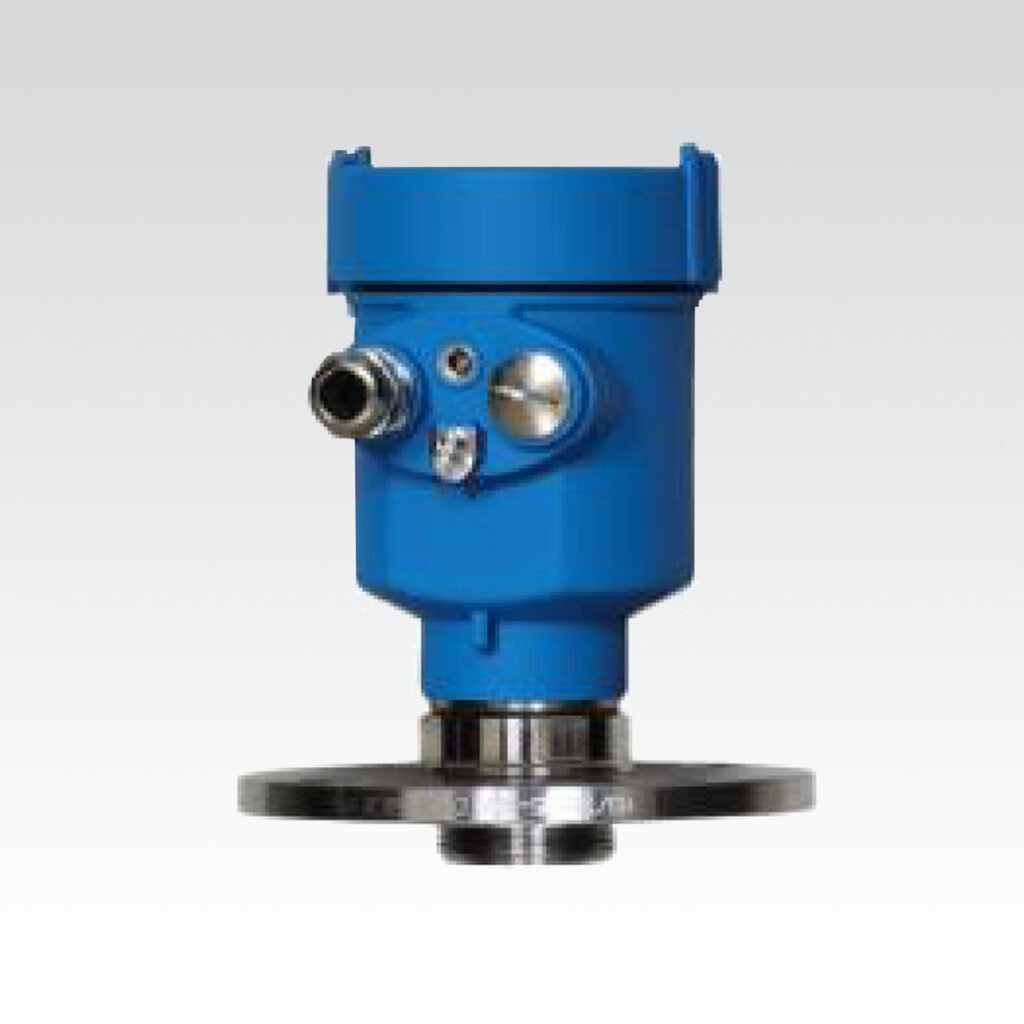

- Process connection: Flange DN50
- Process temperature: -40～130℃
- Process pressure: -0.1～2.5 MPa
- Antenna size: 34mm lens antenna
- Antenna material: PTFE
- Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
- Protection level: IP67
- Center frequency: 80GHz Launch angle: 3°
- Shell: Aluminum/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol
- Four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART; Protocol/RS485/Modbus protocol
- Measuring medium: strongly corrosive liquid, steam, foam
- Measuring range: 0.1m-10/20/30/60/100m
- Process connection: Flange DN50
- Process temperature: -40～130℃
- Process pressure: -0.1～1.0 MPa
- Antenna size: 76mm lens antenna
- Antenna material: PTFE
- Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
- Protection level: IP67
- Center frequency: 80GHz Launch angle: 3°
- Shell: Aluminum/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol
- Four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART; Protocol/RS485/Modbus protocol
- Measuring medium: strong corrosive liquid, steam, foam, high temperature and high pressure
- Measuring range: 0.1m-10/20/30/60/100m

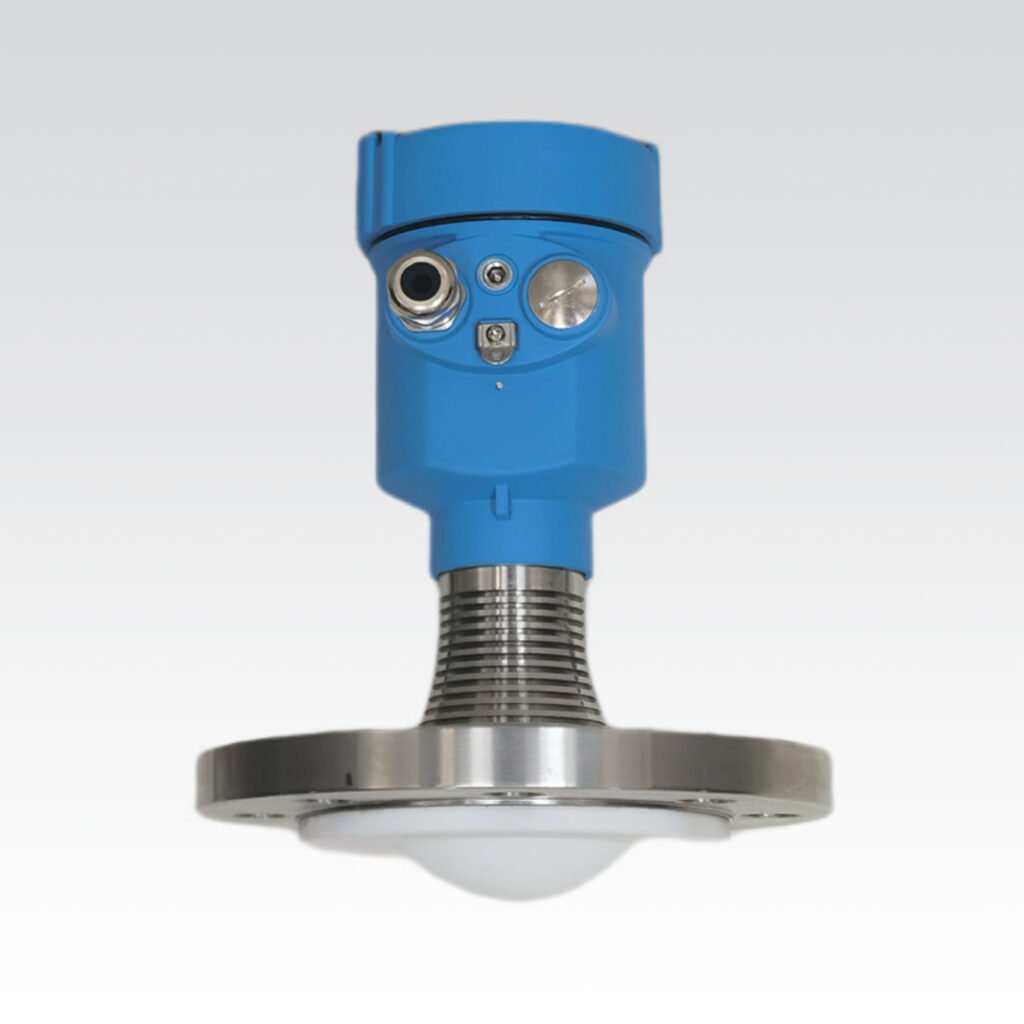

- Process connection: Flange DN80
- Process temperature: -40～200℃
- Process pressure: -0.1～2.5 MPa
- Antenna size: 76mm lens/ integral fill antenna
- Antenna material: PTFE
- Accuracy: ±1mm Protection level: IP67
- Center frequency: 80GHz Launch angle: 3°
- Shell: Aluminum/Plastic/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol
- Four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART; Protocol/RS485/Modbus protocol
- Measuring medium: solids, storage containers, process containers, or strong dust situation
- Measuring range: 0.3m-10/20/30/60/100m
- Process connection: Flange DN100
- Process temperature: -40～110℃
- Process pressure: -0.1～0.3 MPa

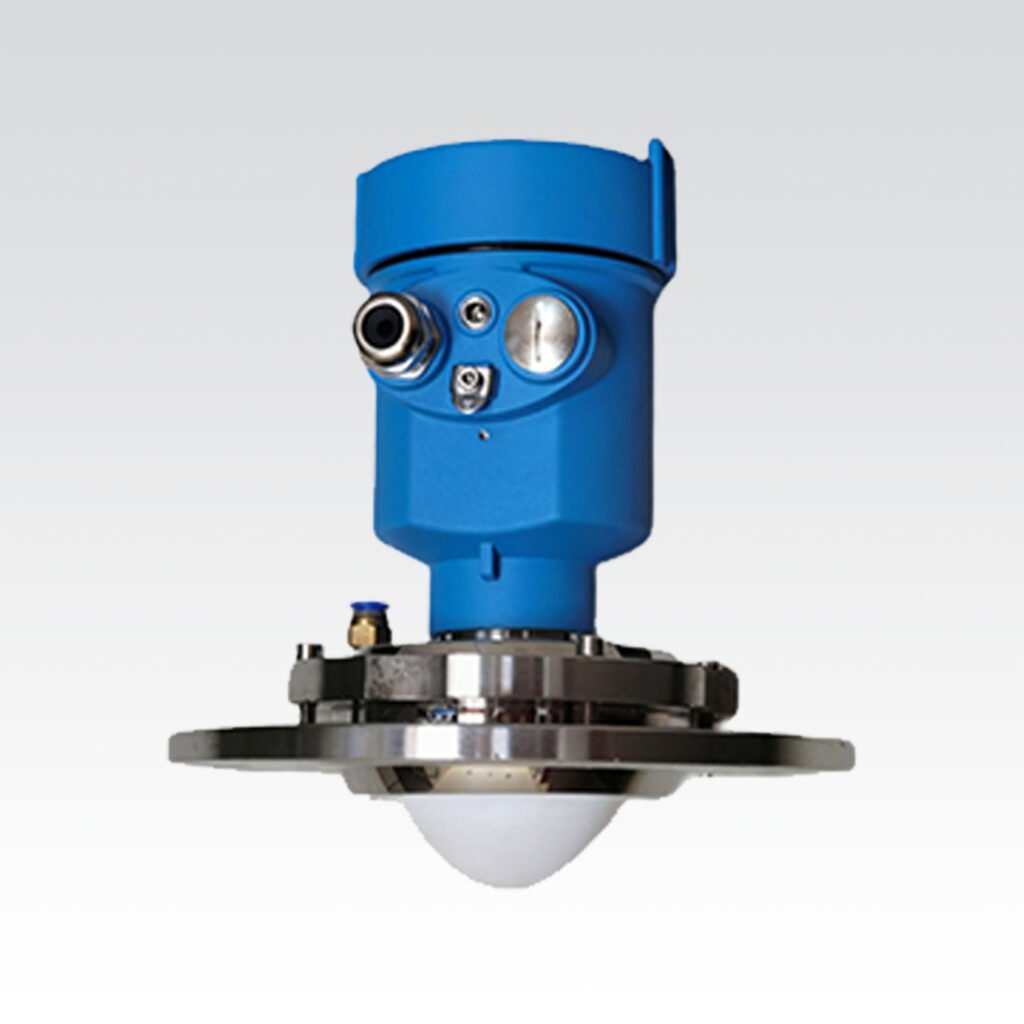

- Antenna size: 76mm lens antenna/ universal purge (or without a purge)
- Antenna material: PTFE
- Accuracy: ±5mm Protection level: IP67
- Center frequency: 80GHz Launch angle: 3°
- Shell: Aluminum/Plastic/Stainless steel
- Signal output: Two-wire system/4…20mA/HART protocol; four-wire system/4…20mA/HART protocol; Six-wire system/4…20mA/HART; Protocol/RS485/Modbus protocol
Applications
The Ziasiot RD80G series radar level sensor is for continuous level measurement Of liquid/tank/silo/bin/cement/grain warehouse/Slurry, etc., measuring range from 0 to 100 m.
