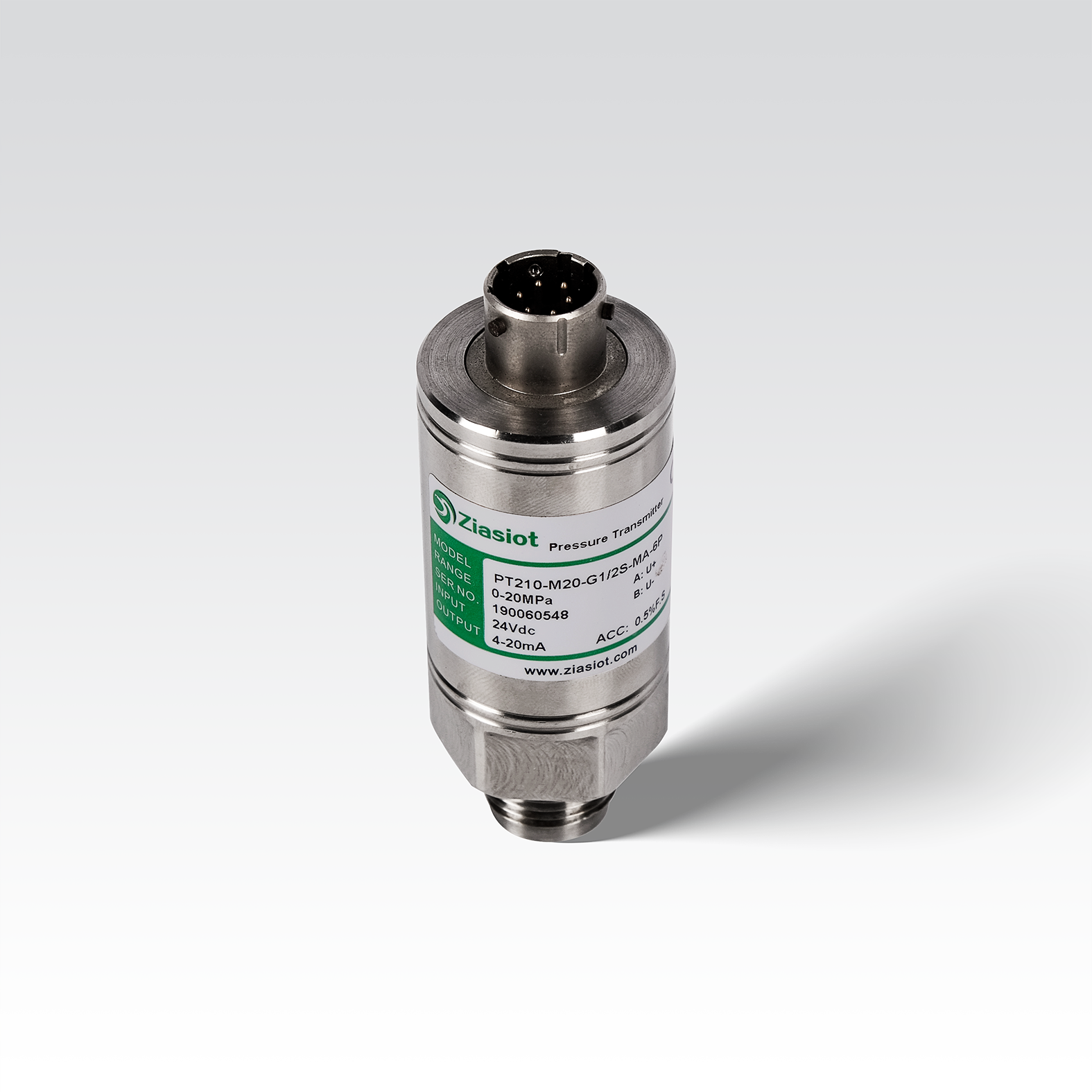

PT210 General Purpose Pressure Transmitter
PT210 General Purpose Strain Gauge Pressure Transmitter is a civil and industrial product with large consumption. It adopts superior 17-4PH material as elastomer and imported strain gauge, can convert gauge pressure of measured medium into standard signal output of voltage and current. It has wide pressure measuring range, stainless steel housing, accurate and durable, small size and many types of pressure ports available, which is easy to install and use.
Product Description
PT210 series standard pressure sensor is a civil and industrial product with large consumption. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid and gas.
PT210 series pressure transmitter adopts superior 17-4PH material as elastomer and imported strain gauge, it can convert gauge pressure of measured medium into standard signal output of voltage and current. It has wide pressure measuring range, stainless steel housing, accurate and durable, small size and many types of pressure ports available, which is easy to install and use.
Features
Accuracy superior to±0.5%FS
Imported strain gauge
0~10bar or 0~4000bar
Stainless steel encapsulation
Multiple electrical connection
Protection grade IP65
Application Area
Industrial process detection&control
Hydraulic System
Industrial mechinery manufacturing
General industrial applications
Technical Parameters
| Pressure range | 0~10 bar,0~1600bar (0-1MPa,0-160MPa) | ||
| Type of pressure | Gauge pressure | ||
| Measurement accuracy | 0.25%F.S/0.5%F.S | ||
| Behaviour of electricity | Two wire system | Three-wire system 0 ~ 10v | three-wire system |
| Output signal | (4～20)mA | (0～10)V | (0～5)V |
| Power supply | 12-30VDC | 12-30VDC | 12-30VDC |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k |
| Response Time | ≤3msec | ≤10msec | ≤10msec |

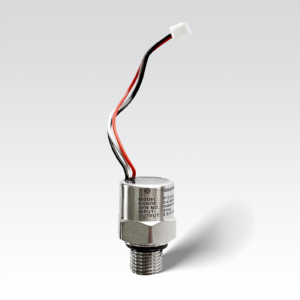

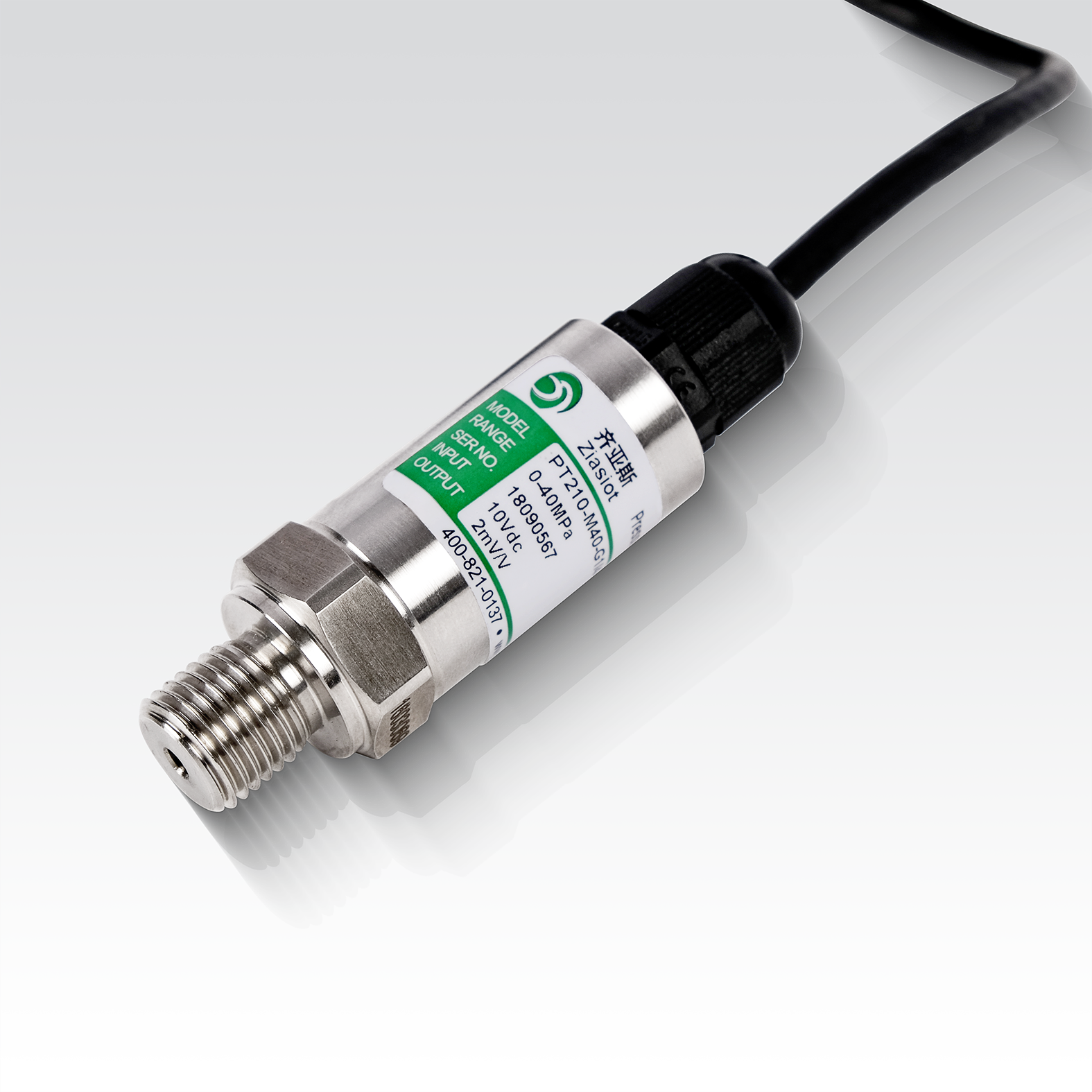

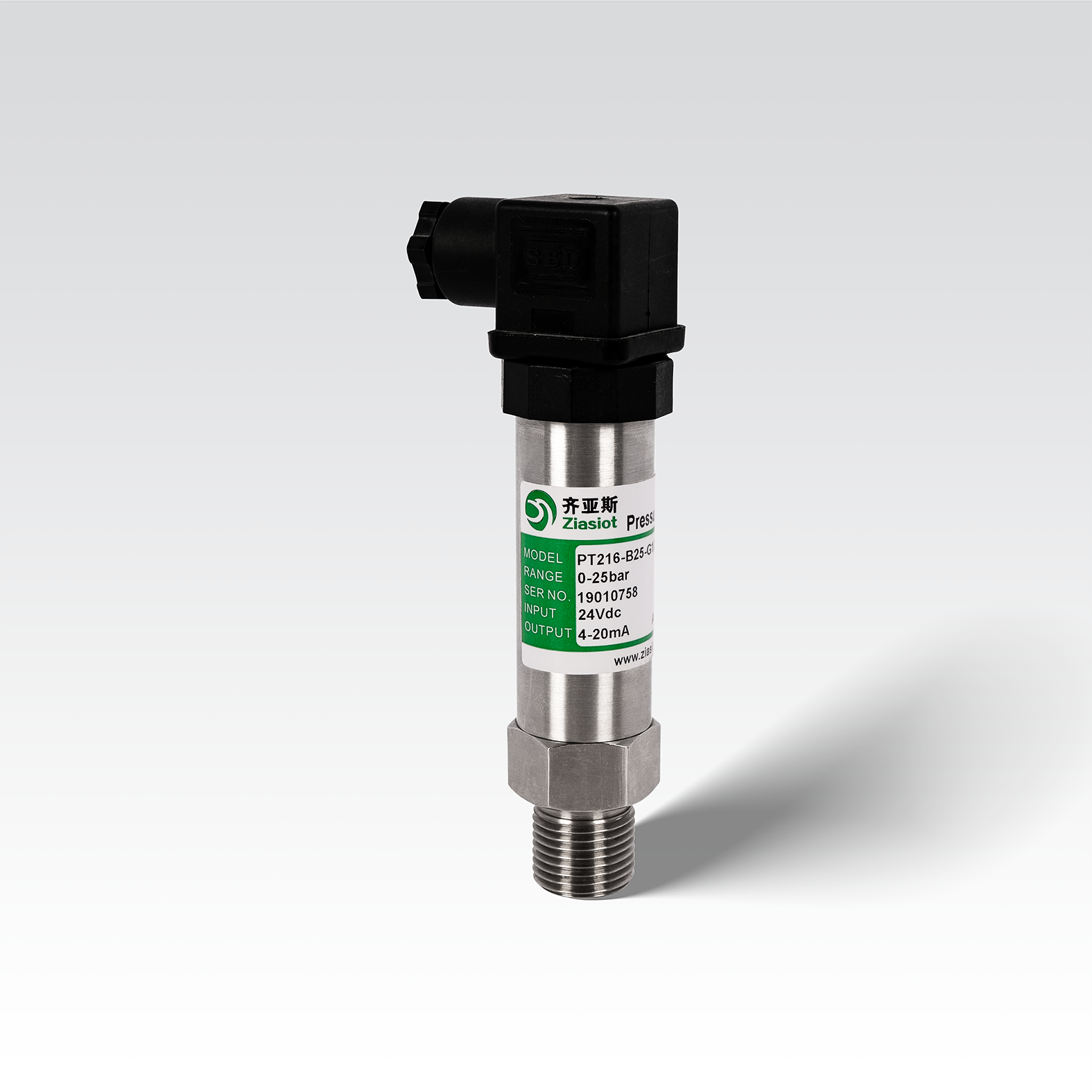

| Electrical connection | M12 connector, hessman, PACK connector, Leading wire | ||
| Overload pressure | 1.5 times rated pressure | ||
| Working temperature | (-20～80)℃ | ||
| Temperature Drift | ≤0.04% /℃ | ||
| The protection grades | IP65 | ||
| Response rate | Overload pressure≤10msec | ||
| Long term stability | 0.2%FS/year | ||
| Mechanical Shock | 100g/1msec | ||
| Process connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, M20x1.5, customize | ||
Selecting Guid
Video
Note
* Please let us know what kind of model, measuring range, output, the screw thread & electric connection type, accuracy, and diameter.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
Package
* All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.
Shipping
* Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Warranty
* We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
