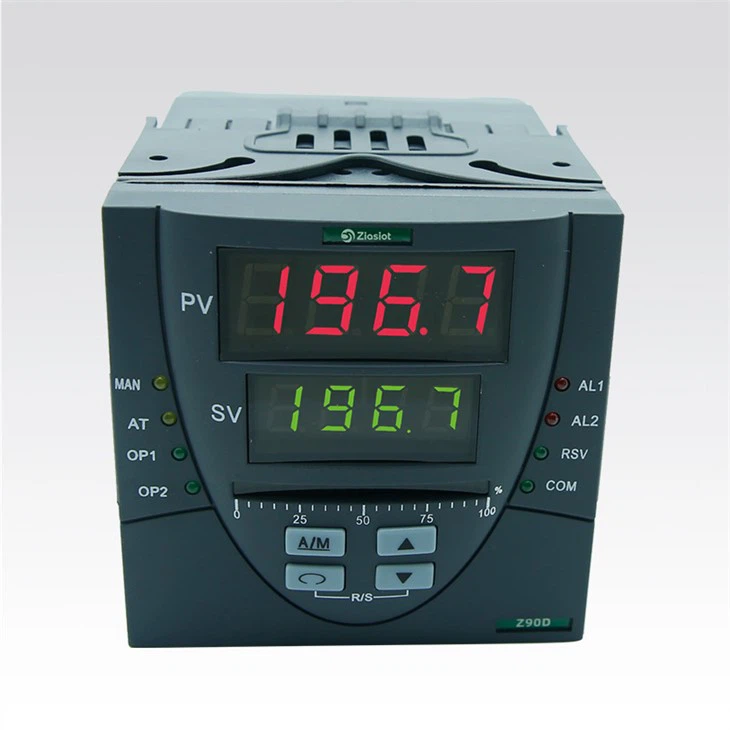

Z60D/Z80D/Z90D Intelligent PID Pressure Controller
Z90D/Z80D/Z60D Intelligent PID pressure controller is a kind of superior reliable single-circuit intelligent PID pressure regulating instrument.It can be used in the industrial process automation control like conventional temperature control,flow rate control,liquid level pressure control,etc.outputting through current,voltage,SSR drive,one-phase/three-phase SCR phase-shift/zero passage,relay,etc. to realize quantitative programming curve control.
High measuring accuracy,strong anti-interference
Small size ,light weight
Diverse control output
PID output regulation
Two-way relay output
Application Area
Chemical fiber industry
Injection molding industry
Rubber industry
Constant pressure water supply
Pressure system
Product Description
The intelligent PID pressure controller is a kind of superior reliable single-circuit intelligent PID pressure regulating instrument.It can be used in the industrial process automation control like conventional temperature control,flow rate control,liquid level pressure control,etc.outputting through current,voltage,SSR drive,one-phase/three-phase SCR phase-shift/zero passage,relay,etc. to realize quantitative programming curve control.
Technical Data
| Displayer | double-row four-digit highly bright LED digital display |
| Resolution | 0.001 |
| Range | -1999…9999 (decimal point variable) |
| Accuracy | 0.2%F.S |
| Power Supply | 110-240VAC, 20-32VDC |
| Signal Input | 2mv/V, 4-20mA, 0-5V, 0-10V |
| Signal Output | 4-20mA, 0-5V, 0-10V, relay output, RS485RS232 communication |
| Working Temp | -10-50℃ |
Dimensions
Ordering Guide
