Product Features

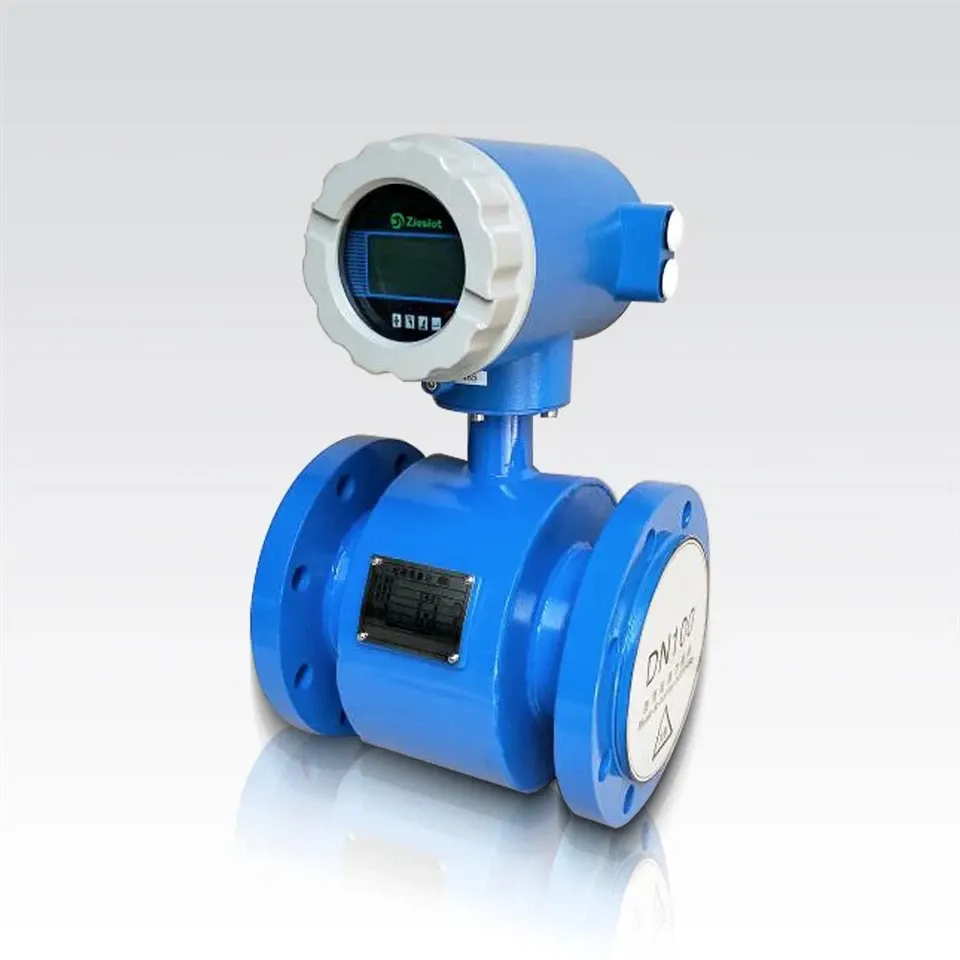

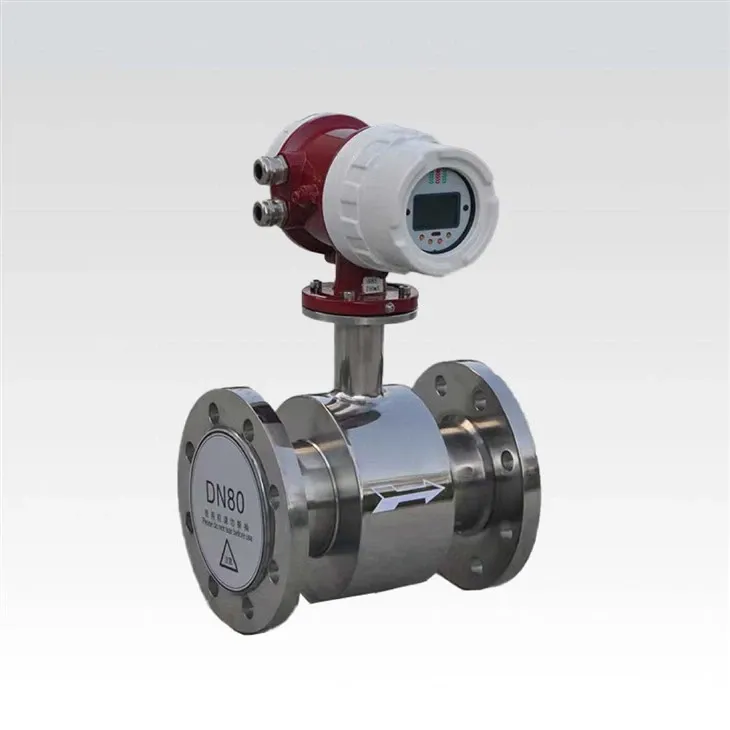

The LDG intelligent electromagnetic flowmeter has a display. Output 4_20 mA and 0_1 kHz. Alarm and other functions. Other additional functions can be added according to the actual situation:
1. Split installation: the sensor needs to be installed below the ground or other reasons. Split installation should be selected
2. RS – 485 communication: the sensor needs to communicate with other equipment. The RS – 485 communication function is required,
3. If you need other functions, please call to customize.
Description
LDG intelligent electromagnetic flow meter is for measuring the volume flow in closed conduits conductive liquid and slurry, such as clean water, sewage, various chemical salt solutions, and mud slurry, Pulp and liquid foods, etc.
Technical parameters
Conductivity: >5 pS/cm
Velocity range: 0.5~10 m/s
Extended range: 0.1~15 m/s
Flow direction: Positive. Reverse, flow
Accuracy level: ±0.2%, ±0.3%, ±0.5%
Repeatability: ±0.1%, ±0.15%, ±0.25%
Work pressure: < 4.0 MPa (DN10-80) / < 1.6 MPa (DN100-150) / < 1.0 MPa (DN200-1000) / < 0.6 MPa (DN1100-2200) / Special pressure-resistant
customized fluid temperature: -25 °C~60 °C
Protection level: stainless steel 316L IP68
Number of electrodes: 2-6
Lining material: Neoprene/Polychloroprene rubber (-F4IPTFE) PTFE
Output signal: Standard current 4〜20 mA
Communication: RS-485 / Hart
Power supply: DC24V10VA AC220V10VA working environment
Humidity: 5%~90%
Application:
LDG intelligent electromagnetic flow meter for measuring the volume flow in closed conduits conductive liquid and slurry, such as clean water, sewage, various chemical salt solutions, and mud slurry. pulp and liquid foods etc.
