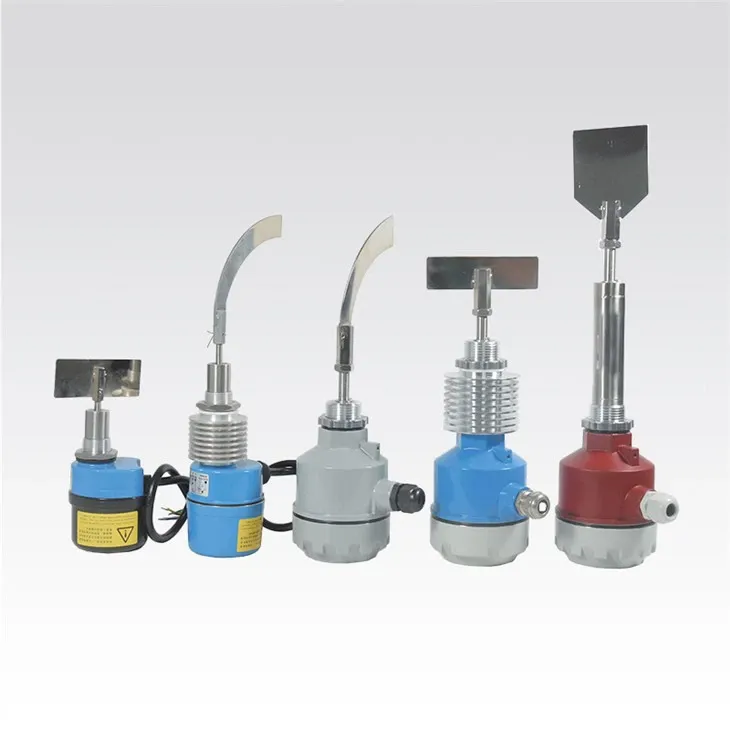

Rotary Paddle Level Switch

Description

The rotary paddle level switch is used for solid materials (including powder, block, granular, gel, etc.) level controller. It has the characteristics of good sealing, strong overload capacity, light and easy to install, and large output contact capacity. Materials with different specific gravity can be realized by adjusting the tension of the spring, and the contact material part is made of stainless steel. Rotor switches have been widely used in chemical, plastic, cement, pharmaceutical, feed, food and other industries.

Features

1. American small hopper professional technology, 3 a bearing support, more reliable operation
2. The original sealing design can prevent dust infiltration (patent actual).
3. The torque is stable and reliable and the torque can be adjusted.
4. The blade bears excessive load, and the clutch automatically slips to protect the motor from damage.
5. Mechanical and electrical separation type structure, the whole free disassembly and easy maintenance.
6. The junction box IP65 protection level, good sealing, can be used outdoors.
7. Special blades can be used for low-density materials

Application

Because of its solid structure, this paddle level switch is very suitable for measuring powdery and granular materials such as cement, sand, grain, feed, pharmaceuticals, etc.

Parameters

Overall Structure Diagram

As shown in the figure, the rotary level switch consists of the following components:

Roof Resistance Wiring Diagram
