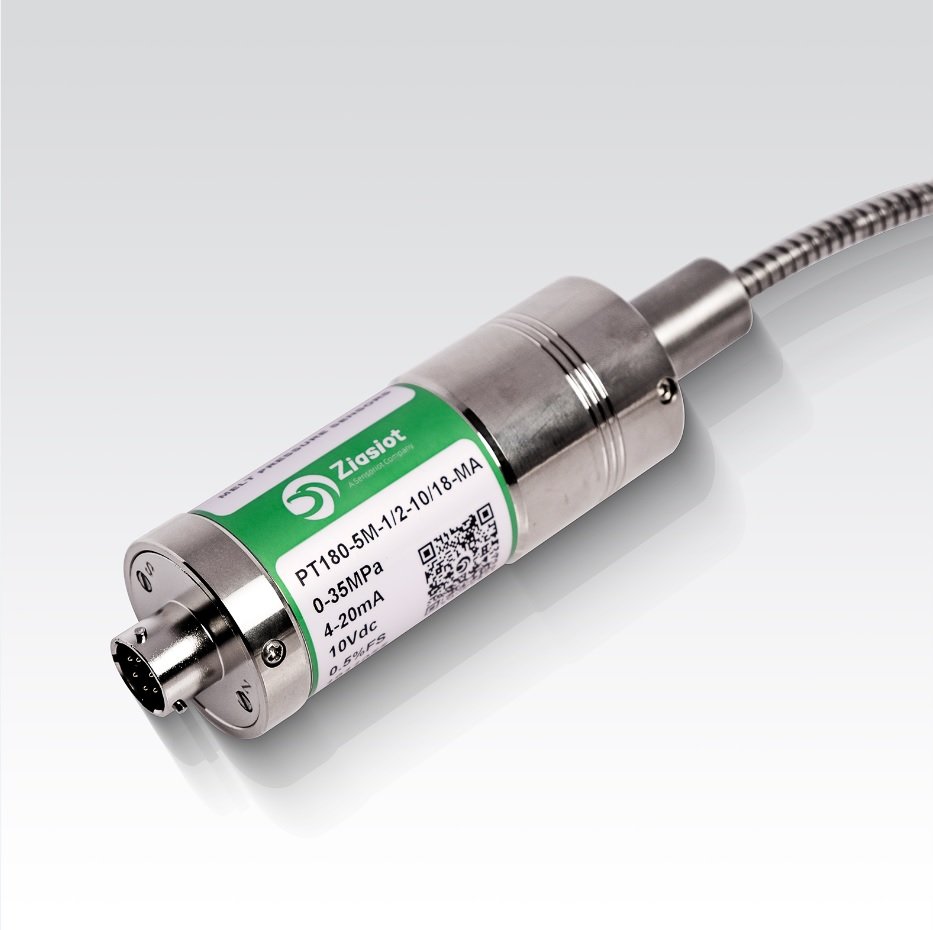

PT180 Capillary-Exposed Melt Pressure Transmitter
PT180 Capillary-Exposed Melt Pressure Transmitter is designed for narrow space application,the special diaphragm and highly antiabrasive coating of which enable it to work normally at high temperature of 400℃.It adopt standard threaded connection with 80% internal calibration and is characterized by high stability and long lifespan.
Signal output: 3.33 mV/V, 0-10 V, 0-5 V, 4-20 mA;
Accuracy grade: ±0.5% F.S.;
Special diaphragm coating;
Multiple signal outputs;
Patented Product;
IP65 Safety Grade;
80% Internal calibration;
suitable for a narrow space application;
Application Area
Profile lines
Compounders
Sheet lines
Pipe lines
Food package
Accumulator head
Product Description
The capillary-exposed melt pressure transmitter is designed for narrow space applications,the special diaphragm and highly antiabrasive coating of which enable it to work normally at high temperature of 400℃. It adoptsa standard threaded connection with 80% internal calibration and is characterized by high stability and a long lifespan.
Technical Parameters
Input Voltage ： 10VDC(mV/V signal output) 24Vdc(mA,Volt signal output)
Bridge Resistance： 350Ω
Output Signal： 4～20mA,0～5V,0～10V
Diaphragm Material： 17-4PH
Accuracy Grade： ±0.5%F.S,±0.25%F.S available
Diaphragm Temp： 400℃
Pressure Range： 0～3.5MPa,0～200MPa
E-Connection： 6-pin standard aviation connector
Pressure Unit： psi,bar,MPa
Mounting Torque： 40N.m Max
Overload Capacity： 1.5 times rated pressure
Process Connection： 1/2-20UNF
Zero Temp Drift： 0.003MPa/℃
Ingress Protection： IP65
Electrical Environmental Temperature： -20～85℃
