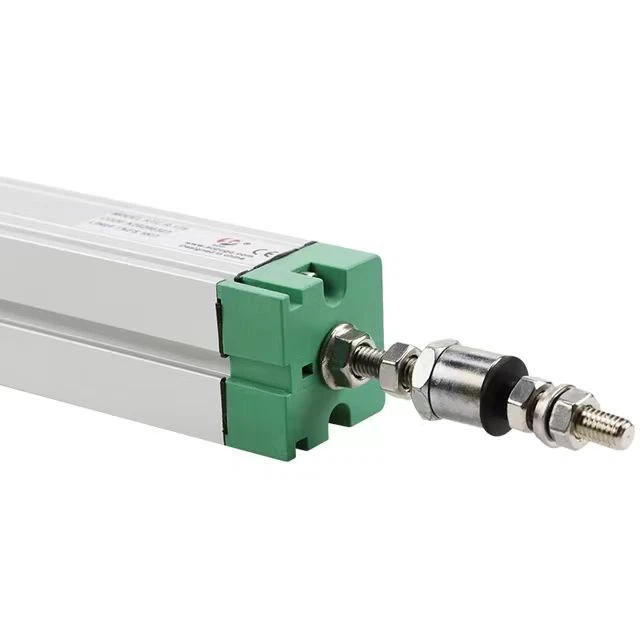

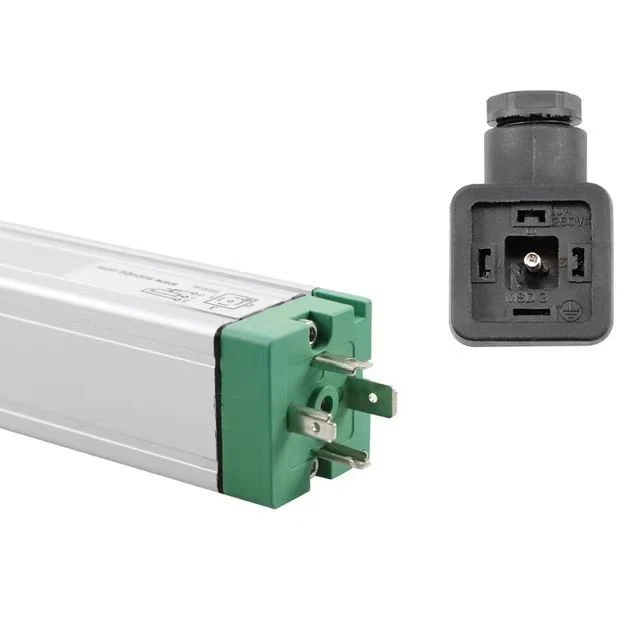

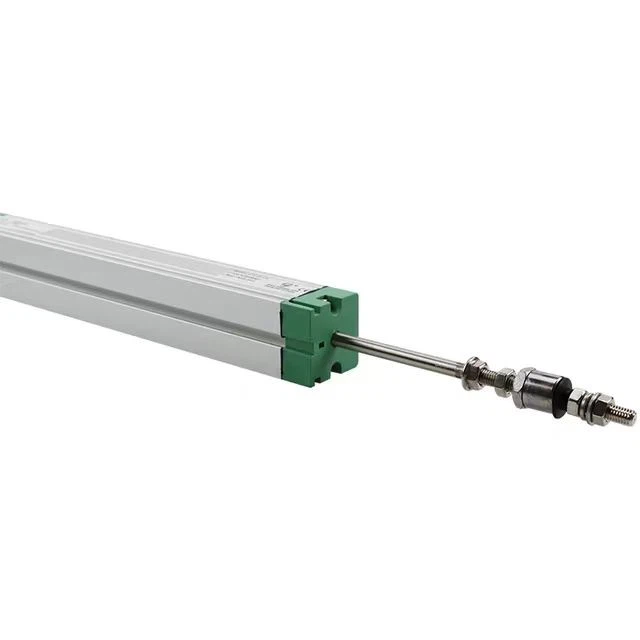

Linear Displacement Position Sensor

Ziasiot ZSLS2 Linear Displacement Position Sensor with conductive plastic element is designed for the displacement or length
measurement and is available in different stroke lengths up to 1250 mm. The sensors give infinite resolution with repeatability of 0.01mm and outstanding linearity of 0.04% maximum.

Ziasiot ZSLS2 Linear Displacement Position Sensor has a solid stainless steel shaft with long bearings in the housing for a robust and smooth operation with long life. An improved technique for making connections to resistance track (Double Trimming Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions..

1. Rugged construction, compact size and light weight, straight line measurement, easy to install
2. Economic cost, and cost savings for customers
3. Cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability
4. Absolute encoder, multi-output.
5. Anti-dust, anti-vibration, durable.
6. Groove for cable, each circle trip is the same, high repetition accuracy.
7. Multi-strand soft stainless steel rope, corrosion-resistant type.
8. 0 to 5000mm measuring range
9. Protected to IP67
10. CE Approved

ZSLS2 Linear Displacement Position Sensor is suitable for the position detection of all types of equipment. Such as die casting machine, rubber machines, shoe machines, EVA injection machine and hydraulic machines
