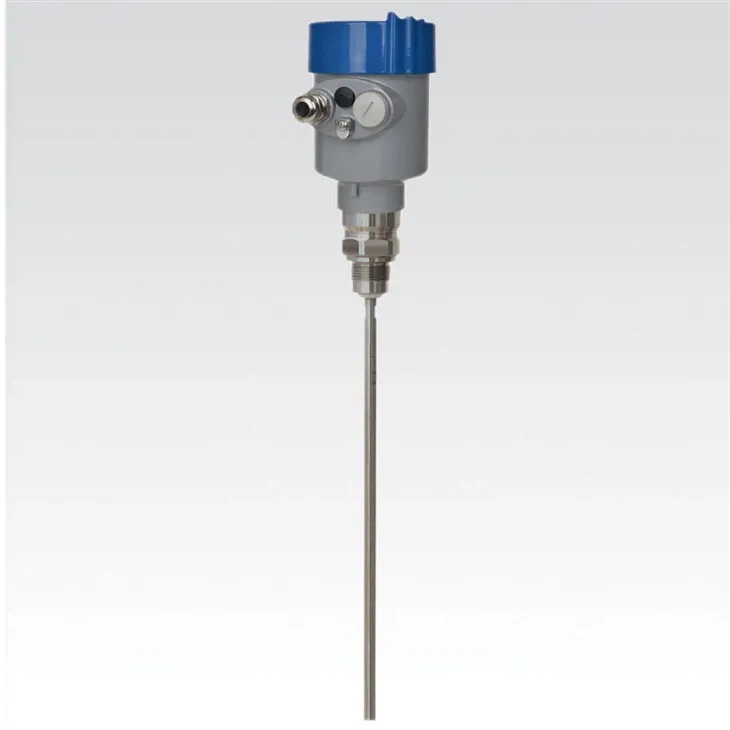

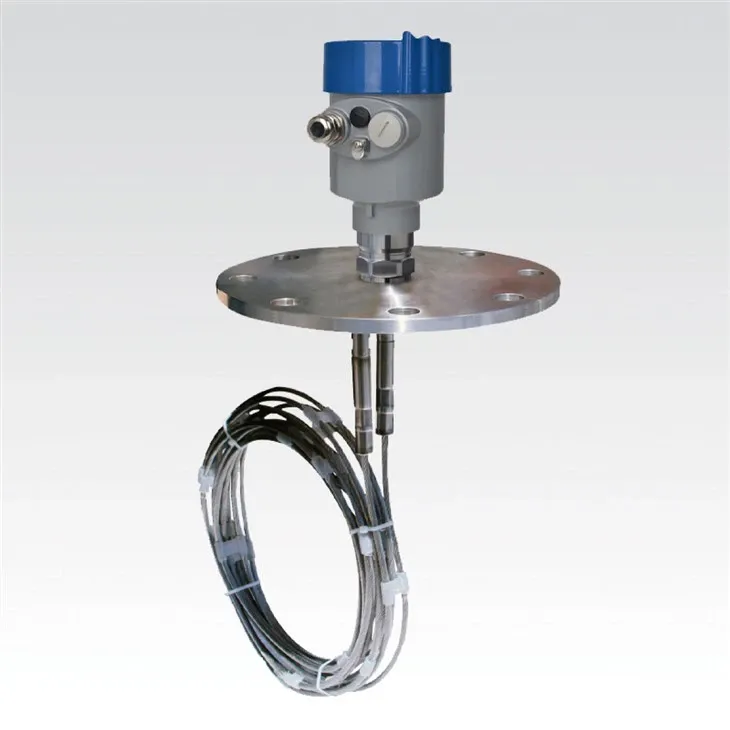

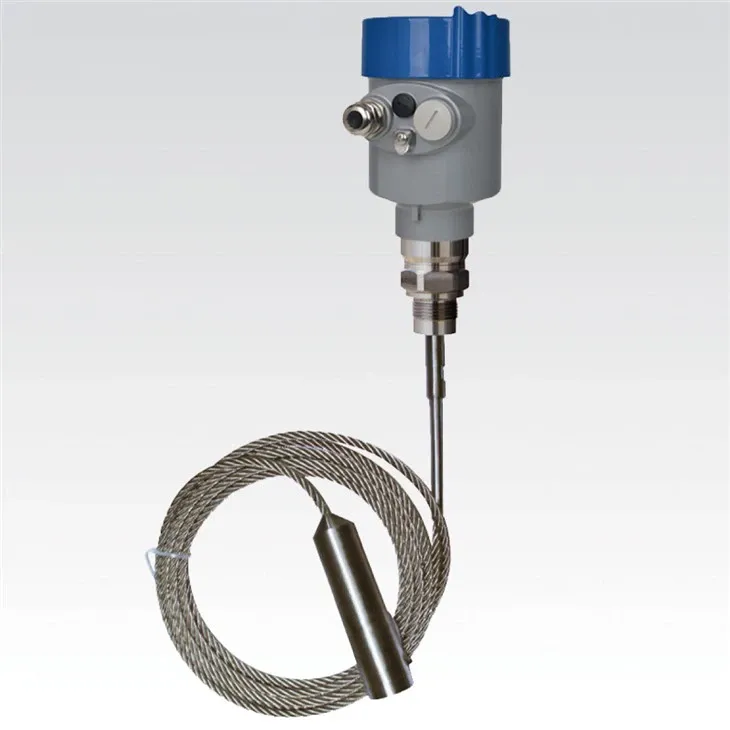

ZSRD70X Guided Wave Radar Explosion-proof Magnetic Level Transmitter is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light, and the running time can be converted into a level signal by electronic components. The probe sends out high-frequency pulses and propagates along the cable or rod probe. When the pulses meet the surface of the material, they are reflected back and received by the receiver in the meter, and the distance signal is converted into a level signal.
The reflected pulse signal is transmitted to the electronic circuit part of the instrument along the cable or rod probe. The microprocessor processes this signal to identify the echo generated by the microwave pulse on the surface of the material. The correct echo signal identification is completed by the pulse software, and the distance D from the surface of the material is proportional to the time travel T of the pulse:
D=C×T/2
Where C is the speed of light
Since the distance E of the empty tank is known, the level L is:
L=E-D
By entering the empty tank height E (=zero point), the tank is full
Height F (= full scale) and some application parameters
Setting, application parameters will automatically make the meter adapt to the measurement
Quantity environment, corresponding to 4-20mA output.
Measuring range:
H—-Measuring range
L—-empty tank distance
B—-top blind zone
E—-Minimum distance from probe to tank wall
The top blind zone refers to the minimum distance between the highest material surface of the material and the measurement reference point.
The bottom blind zone refers to a distance near the bottom of the cable that cannot be accurately measured.
There is a finite measurement distance between the top blind zone and the bottom blind zone.
Application
● The product electromagnetic wave emission angle is less than 3°, which is suitable for narrow space or guide wave pipeline measurement
● The product can reach a 120M measurement range, suitable for the measurement of a very large storage tank
● Product measurement blind area in 7-8CM range, suitable for small storage tanks
● The product has extremely high measurement accuracy, suitable for high precision measurement
● The product has rich echo processing algorithm and experience data of various operating conditions, mixing and heating rod.
Features
● 77GHz-81GHz FM wave radar
● 5GHz super-large FM scanning frequency width, wide application surface
● Standard HART, RS485 / MODBUS bus protocol is supported
● Support the upper machine setting software, tank side table and other operating modes
● 24VDC power supply
● Simple installation structure, adapted to various installation forms on site
