Features：

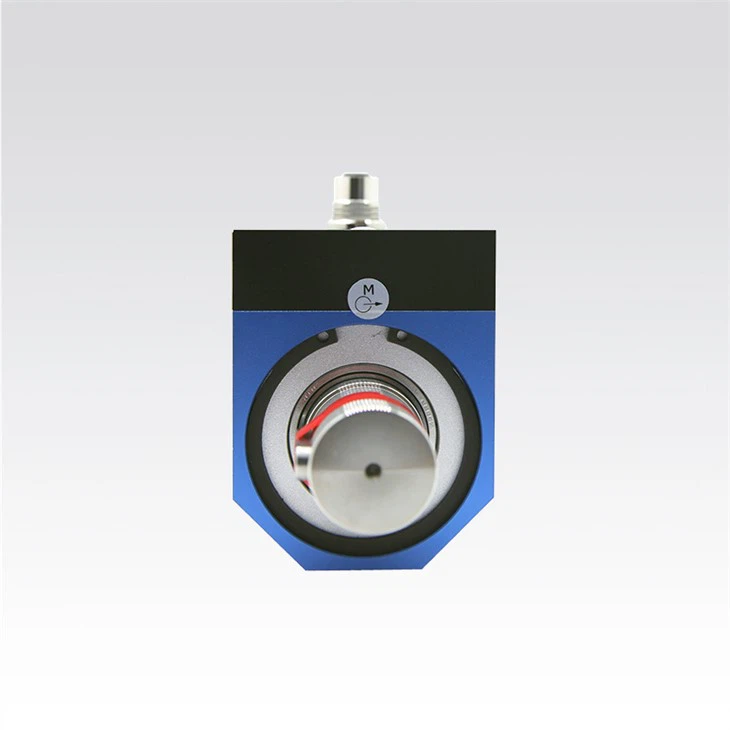

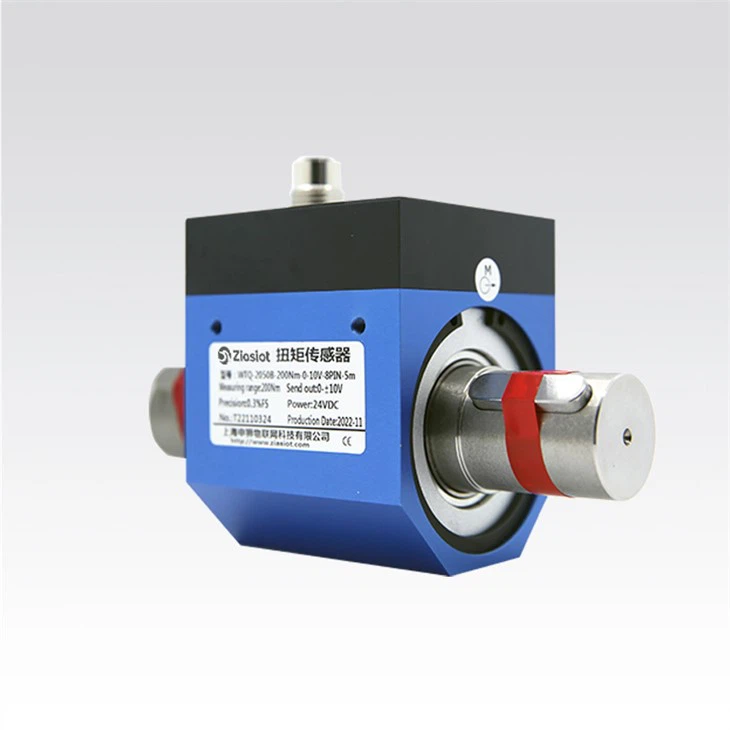

• Small-size, non-contact rotary torque sensor.
• Range 5-500 Nm.
• Output 10 ± 5 KHz, 4-20 mA, ±5 VDC, ±10 VDC, RS485/232, suitable for long-distance transmission.
• Stainless steel shaft.
• Maximum speed of 8000 RPM.
• Can be equipped with speed output.
• Can display torque/speed/power with OLED panel.
• The sensors are built with a very compact structure and are easy to install.
Application:
These BPM812 dynamic rotating torque sensors measure fast-changing torques at rotating shafts, and they are widely used for
1. Detection of output torque and power of rotating power equipment such as electric motors, engines, and internal combustion engines;
2. Testing of torque and power of fans, water pumps, gearboxes, and torque wrenches;
3. Testing of torque and power in railway locomotives, automobiles, tractors, airplanes, ships, and mining machinery;
4. Torque and power detection in sewage treatment systems;
5. Manufacture viscometers;
6. The process industry.
Parameters
| Torque capacity | 5, 10, 20, 30, 50, 100, 200, 300, 500 Nm or higher |
| Speed range | 0, 100, 200-1000, 4000, 6000, 7000, 8000 Varies with Capacity |
| Excitation voltage: | 12-30VDC |
| 15V DC (for frequency signal output), | |
| 24V DC (for voltage or current signal output) | |
| Torque signal output | 10±5 kHz, 4-20 mA, 0±5/10 VDC, 0-5/10 VDC, RS485 |
| Speed signal output | 60-pulse TTL, on-off output |
| 0-5/10 VDC, 4-20 mA, RS485/RS232 | |
| Accuracy | ±0.2% F.S./±0.1% F.S |
| Temp Effect on Zero-%RO/ | ±0.02 |
| Temp Effect on Range-%RO/ | ±0.02 |
| Working Temperature Range: | 0 ~ +50℃ |
| Compensated temperature range | -10~+60℃ |
| Electrical connection | 6-pins, 8 pins |
| Safety overload: | 200% F.S. |
| Material | Aluminum body, stainless steel shaft |
| Cable length: | 5 m |
| Cable connection: | Red: Exc+ Black: Exc – Green: Signal + White: Signal- |
Dimension
