PT170/PT172/PT173 Alloy filled Green Melt Pressure Transmitter RoHs &SIL2 Certified
PT170/PT172/PT173 Alloy filled Green Melt Pressure Transmitter RoHs &SIL2 Certified
Pressure Range: 0~3.5MPa～250MPa;
Accuracy :±0.5%F.S;
Signal output: 3.33mV/V,0-10V,0-5V,4-20mA;
Temp:550℃; Alloy Filled;
- Mobile: +86 13621933468
- E-mail: Jessica@ziasiot.com
-
PT170 PT172 PT173.pdf
signal output: 3.33mV/V,0-10V,0-5V,4-20mA
accuracy grade:±0.5%F.S
special diaphragm coating
IP65 protection level
80% internal calibration
Application area
Gas pipe production lines.
Plastic pipe production line.
Geonet unit.
Single corrugated pipe production line.
Core layer foamed pipe production line.
Plastic sheet (sheet) extrusion line.
Polystyrene foam pipe production line.
Film blowing unit, extrusion unit, PE stretch film unit, etc.
Product description
Alloy-filled melt pressure transducer is used to measure pressure at high temperature in the industries like chemical fiber and injection molding,special diaphragm and highly anti-abrasive coating of which enable it to work normally at high temperature of 400℃.It adopts environmental-friendly alloy-filled metal and threaded connection with 80% internal calibration.This series is characterized by good stability and long lifespan.

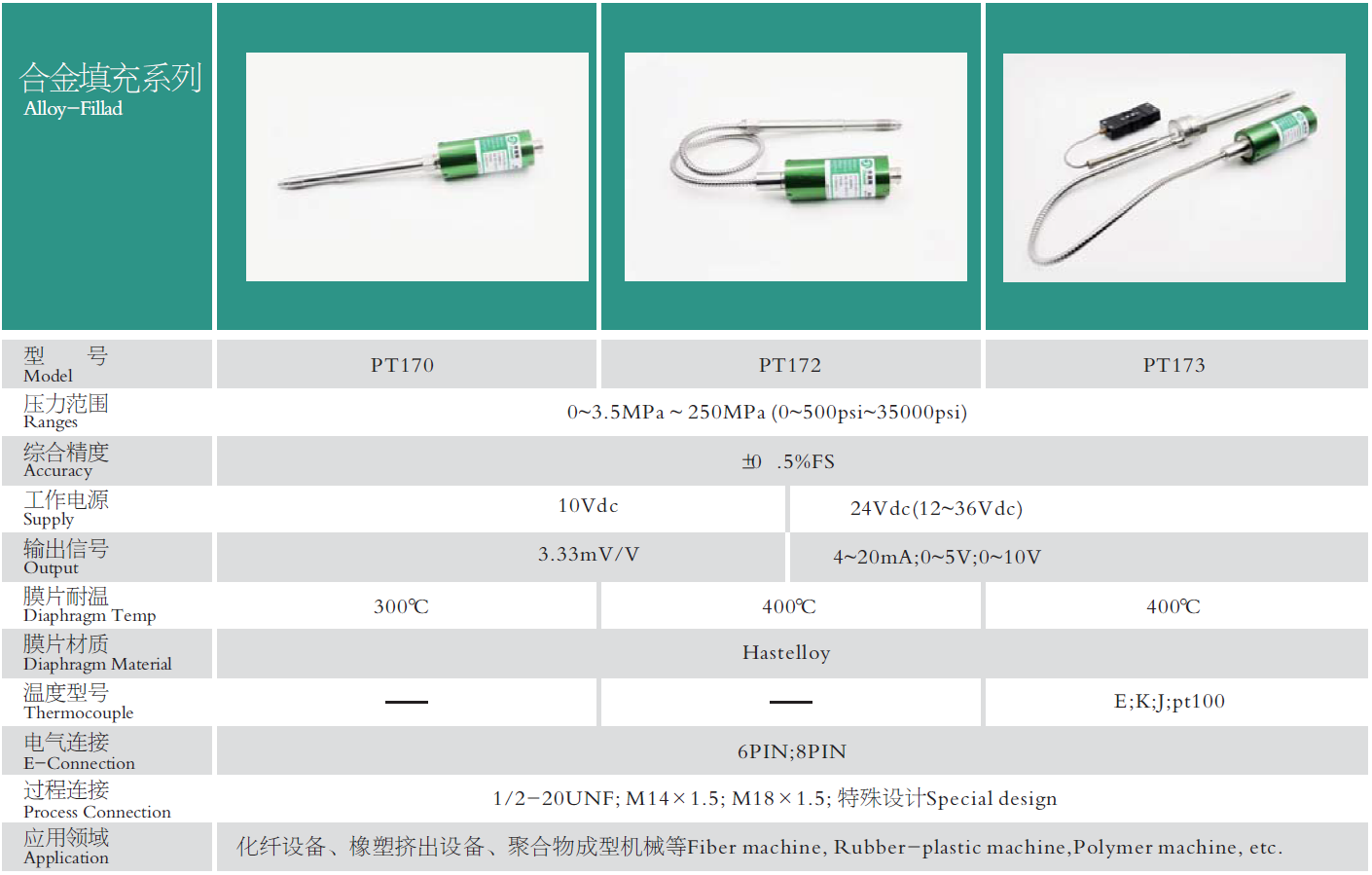

Technical Parameters
|
Input Voltage |
10VDC (mV/V signal output) 24Vdc(mA,Volt signal output) |
Bridge Resistance |
350Ω |
|
Output Signal |
|
Diaphragm Material |
Hastelloy |
|
Accuracy Grade |
±0.5%F.S |
Diaphragm Temp |
400℃ |
|
Pressure Range |
0～3.5MPa,0～200MPa |
E-Connection |
6-pin standard aviation connector |
|
Pressure Unit |
psi,bar,Mpa |
Mounting Torque |
40N.m Max |
|
Overload Capacity |
1.5 times rated pressure |
Process Connection |
1/2-20UNF |
|
Zero Temp Drift |
0.003MPa/℃ |
Protection Level |
IP65 |
|
Electrical Environmental |
-20～85℃ |
Temp Measuring Components |
E,J,K type or Pt100 |
